  • SPECIALITIES
  • Hydraulic Surface Grinder Control Valve
  • Double Way-Throttle Control Valve

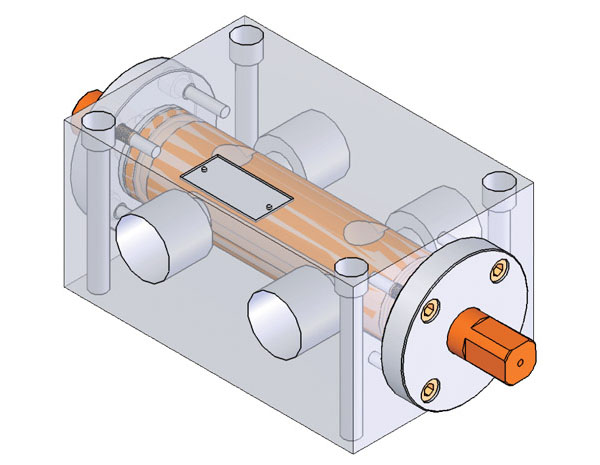

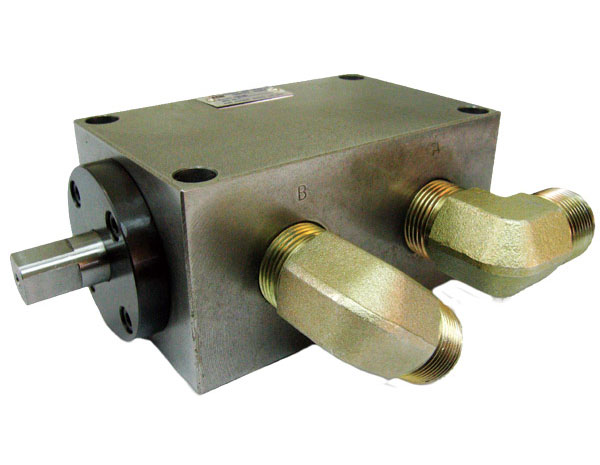

TV-AB-08



MODEL SPEC.



Model

Rated Flow Capacity

(l/min)

Max. Pressure

( kgf/cm2 )

Thread Connection

(PT)

Weight

( kg )





TV-AB-08

160

40

1"

9.1











SYMBOLS

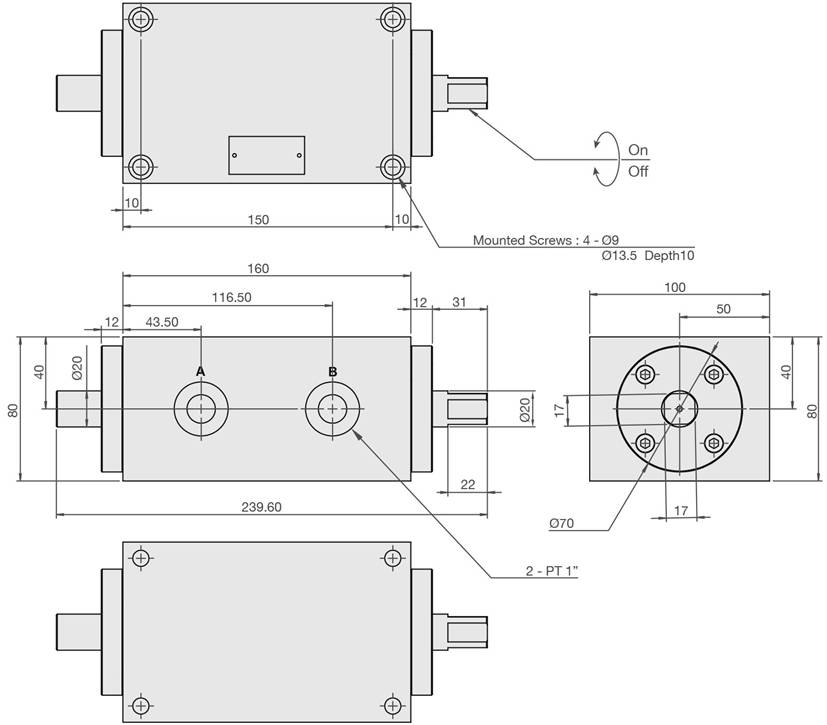

DIMENSION (UNIT : mm)
