MODEL SPEC.
Model
Flow
( l/min )
Rated
Voltage
Frequency
( Hz )
Input
( w )
RT1025S-4T6A1
1 ~ 25
1Ø110V
50/60
35
RT1025S-4T6A2
1Ø220V
RT1025S-4T6A3
1Ø380V
Rated Speed
( r/min )
Noise
( dB(A) )
Operating Pressure
( bar )
Cooling Capacity
( kcal/h )
∆T = 30°C
Weight
( kg )
2850/3450
48
20
1100
2.34
ORDER CODES
RT1025S - 4 T 6 A2
A - b c d e
a. Model Name : RT1025S
b. Conneciton Size :
4:1/2”
c. Thread :
B:BSPP
N:NPT
T:PT
d. Fan Motor Size : 6”
e. Rated Voltage :
A1:AC110V
A2:AC220V
A3:AC380V
SYMBOLS

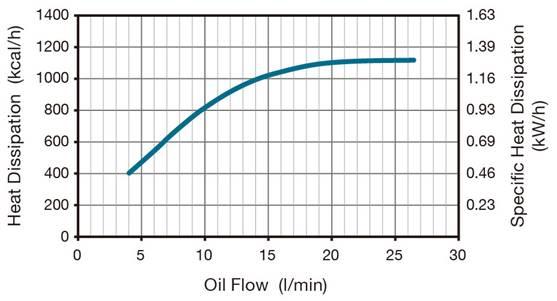

PERFORMANCE CURVES

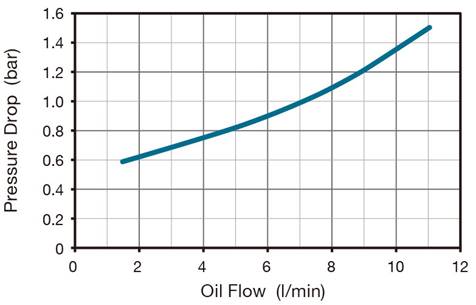

Pressure Differential ∆p
* On the condition of oil viscosity at 32mm2/s.
DIMENSION (UNIT : mm)
