MODEL SPEC.
Model
Connection Thread
and Size
Flow
( l/min )
Max. Pressure
( kgf/cm2 )
Rated
Voltage
CR75C-10N16D1
1 1/4"
1 ~ 120
15
DC12V
CR75C-10N16D2
DC24V
Rated Current
(A)
Input
( w )
Fan Motor Size
( inch )
Weight
( kg )
9.58
115.0
16"
17.1
4.79
ORDER CODES
CR75C - 10 N 16 D2
a - b c d e
a. Model Name : CR75C
b. Conneciton Size : 10:1 1/4”
c. Thread :
B:BSPP
N:NPT
T:PT
d. Fan Motor Size : 16”
e. Rated Voltage :
D1:DC12V
D2:DC24V
SYMBOLS
PERFORMANCE CURVES

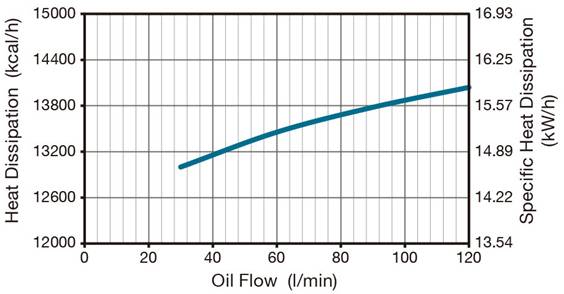

Cooling Capacity

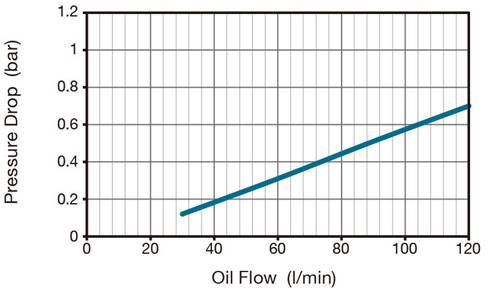

Pressure Differential ∆p
* On the condition of oil viscosity at 32mm2/s.

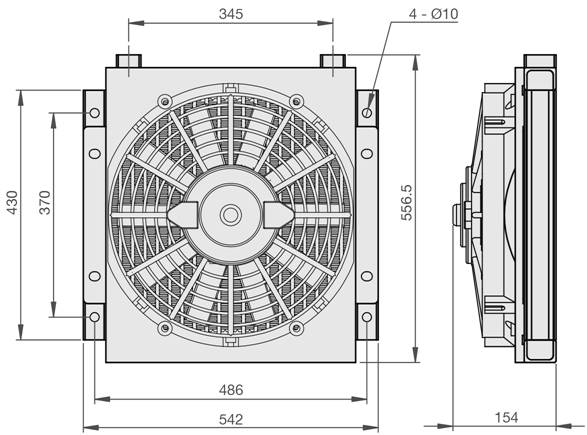

DIMENSION (UNIT : mm)
