OA153

MODEL SPEC.

Model	Flow ( l/min )	Rated Voltage	Frequency ( Hz )	Rated Current (A)	Input ( w )
OA153-A1	1 ~ 10	1Ø110V	50/60	0.25/0.22	16.5/14.5
OA153-A2	1 ~ 10	1Ø220V	50/60	0.10/0.09	13.2/11.9
OA153-A3	1 ~ 10	1Ø380V	50/60	0.08/0.07	18.2/16.0
OA153-D1	1 ~ 10	DC12V	-	0.60	7.2
OA153-D2	1 ~ 10	DC24V	-	0.32	7.7

Model	Rated Speed ( r/min )	Air Flow ( CFM )	Noise ( dB(A) )	Cooling Capacity ( kcal/h ) ∆T = 30°C	Weight ( kg )
OA153-A1	2600/3000	88/109	39	600	1.7
OA153-A2	2600/3000	88/109	39
OA153-A3	2600/3000	88/109	39
OA153-D1	3000	130	45
OA153-D2	3000	130	51

ORDER CODES

OA153 - 3 N 4 A2

a - b c d e

a. Model Name : OA153

b. Conneciton Size : 3:3/8”

c. Thread :

B:BSPP

N:NPT

T:PT

d. Fan Motor Size : 4”, 6”, etc. *

e. Rated Voltage :

A1:AC110V

A2:AC220V

A3:AC380V

D1:DC12V

D2:DC24V

* We would choose the suitable fan motor in accordance with the dimension of the aluminum cool fin part.

SYMBOLS

PERFORMANCE CURVES

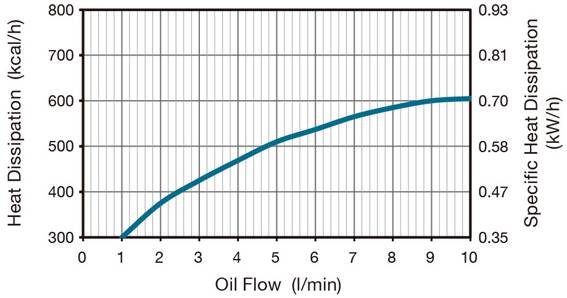

Cooling Capacity

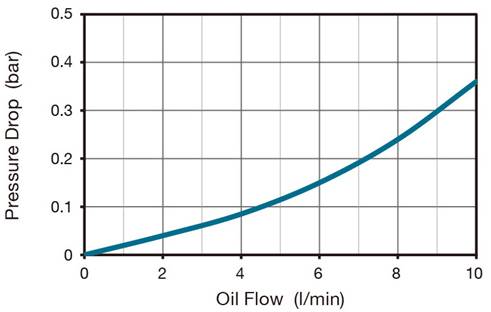

Pressure Differential ∆p

* On the condition of oil viscosity at 32mm²/s.

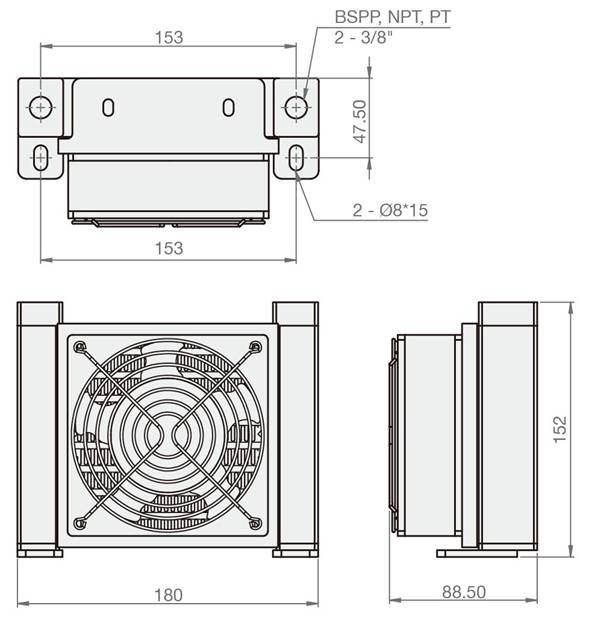

DIMENSION (UNIT : mm)
