MODEL SPEC.
Model
Used Pressure
( kgf/cm2 )
Max. Pressure
Weight
( kg )
JC-PS-02
30 - 600
700
0.75
JC-PS-02L
10 - 230
350
JC-PS-02LL
5 - 60
250
Operating Voltage / Current
AC250V / 3A AC125V / 5A
DC24V / 20mA
ORDER CODES
JC-PS-02 - 2
a - b
a. Model Name : JC-PS-02, JC-PS-02L, JC-PS-02LL
b. Thread Connection :
1:1/4” PT
2:1/4” NPT
3:1/4” BSPP
SYMBOLS

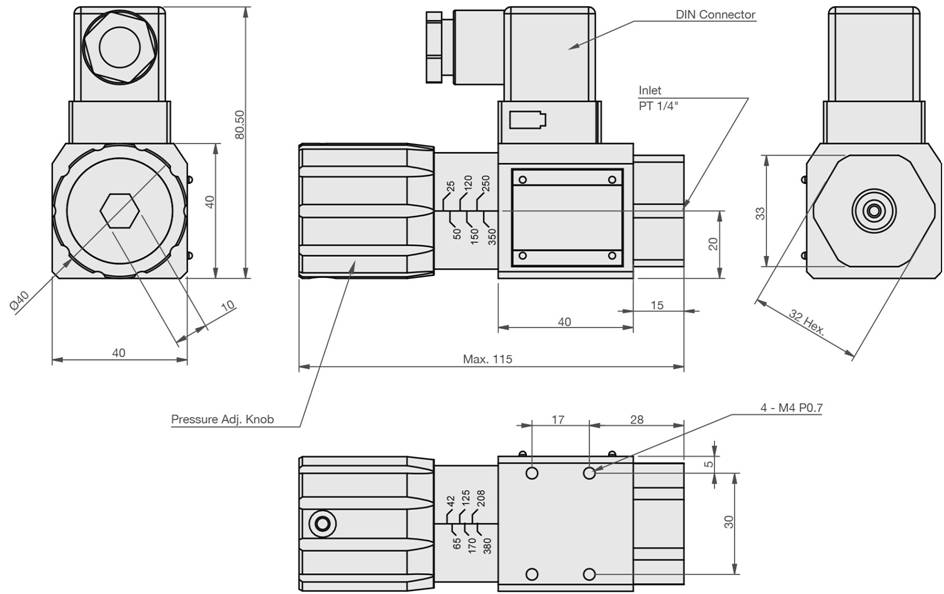

DIMENSION (UNIT : mm)
ACCESSORY
Transparent DIN Connector
AC / DC / Double LED indicators
Operating current : 0.5A or less
