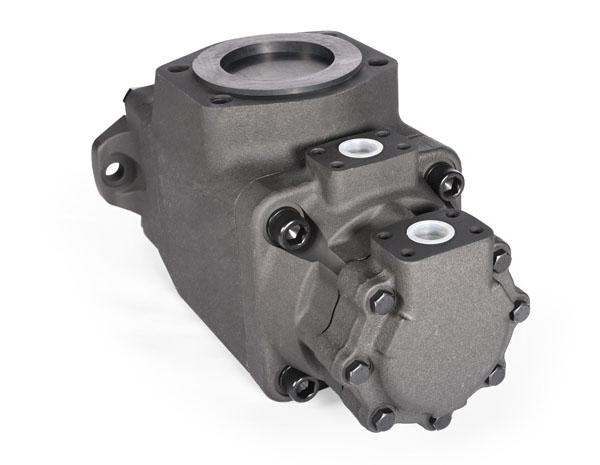

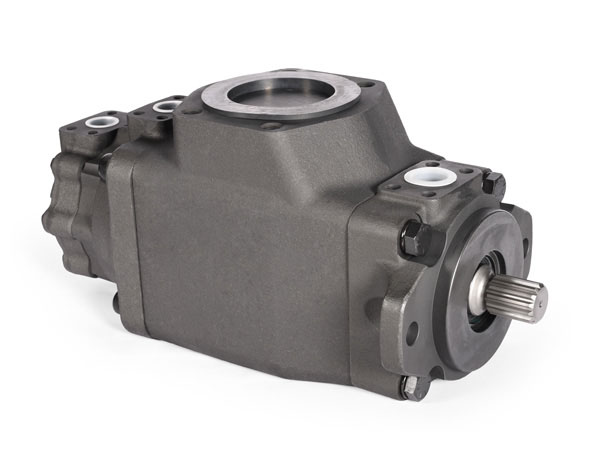

ST6DCCS - 038 -
035 - 014 - 1 R 00 - B 1 - 00
a
-b(P1)-b(P2)-b(P3)- c d
e - f g - h
a. Model
Name :
ST6DCCS:SAE
C 6-bolts, mounting flange J744 SAE C
b. Cam Ring
Volumetric Displacement:
P1 & P2 = 014, 017, 020, 024, 028, 031, 035, 038, 042,045, 050, 061
P3 = 005, 006, 008, 010, 012, 014, 017, 020, 022, 025, 028, 031

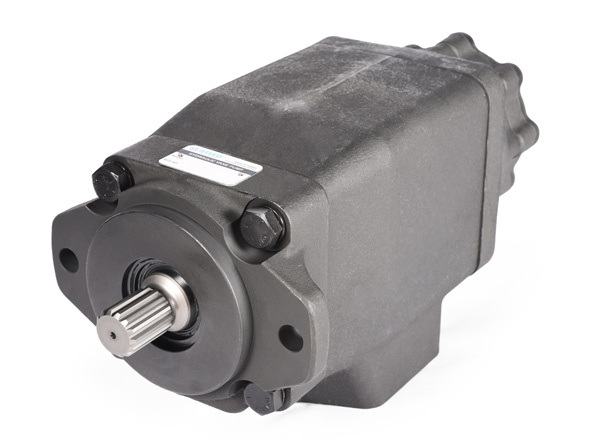

c. Shaft
Type :
1:keyed SAE C
2:keyed SAE CC
3:spline SAE C
4:spline SAE CC
5:keyed no SAE
d. Direction
of Rotation ( Viewed from Shaft Side ) :
R:clockwise direction
L:counter clockwise direction

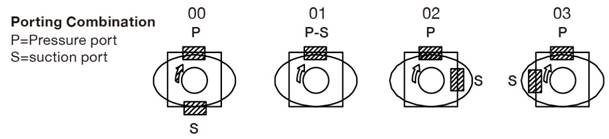

e. Porting
Combination :
00:standard
f.
Design Number : B
g. Seal Class :
1:S1 (for mineral oil)
4:S4 (for fire resistant fluids)
5:S5 (for mineral oil and fire resistant fluids)
h. Mounting

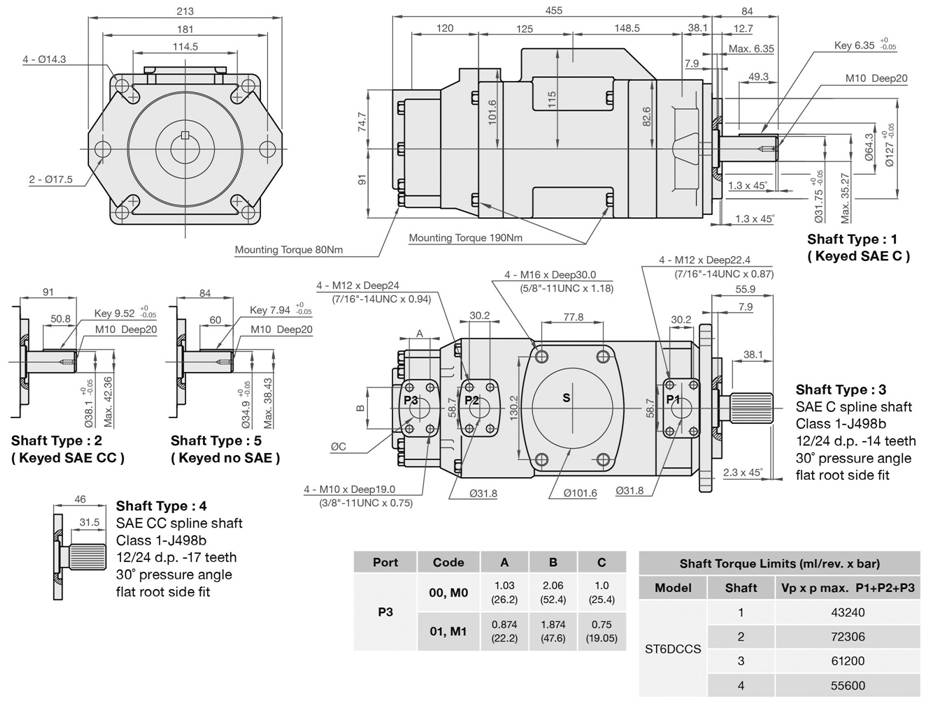

w/connection Variables : SAE 4-bolts flange (J518c)
00:UNC, P1 & P2=1 1/4", S=4", P3=1"
01:UNC,
P1 & P2=1 1/4", S=4", P3=3/4"
M0:metric, P1 & P2=1 1/4", S=4", P3=1"
M1:metric, P1 & P2=1 1/4", S=4", P3=3/4"
|
