ST6EDCS - 066 -
038 - 008 - 1 R 00 - C 1 - P - 0
a
-b(P1)-b(P2)-b(P3)- c d
e - f g - h - i
a. Model
Name : ST6EDCS
b. Cam Ring
Volumetric Displacement:
P1 = 042, 045, 050, 052, 057, 062, 066, 072, 085
P2 = 014, 017, 020, 024, 028, 031, 035, 038, 042,045, 050, 061
P3 = 003, 005, 006, 008, 010, 012, 014, 017, 020, 022, 025, 028, 031

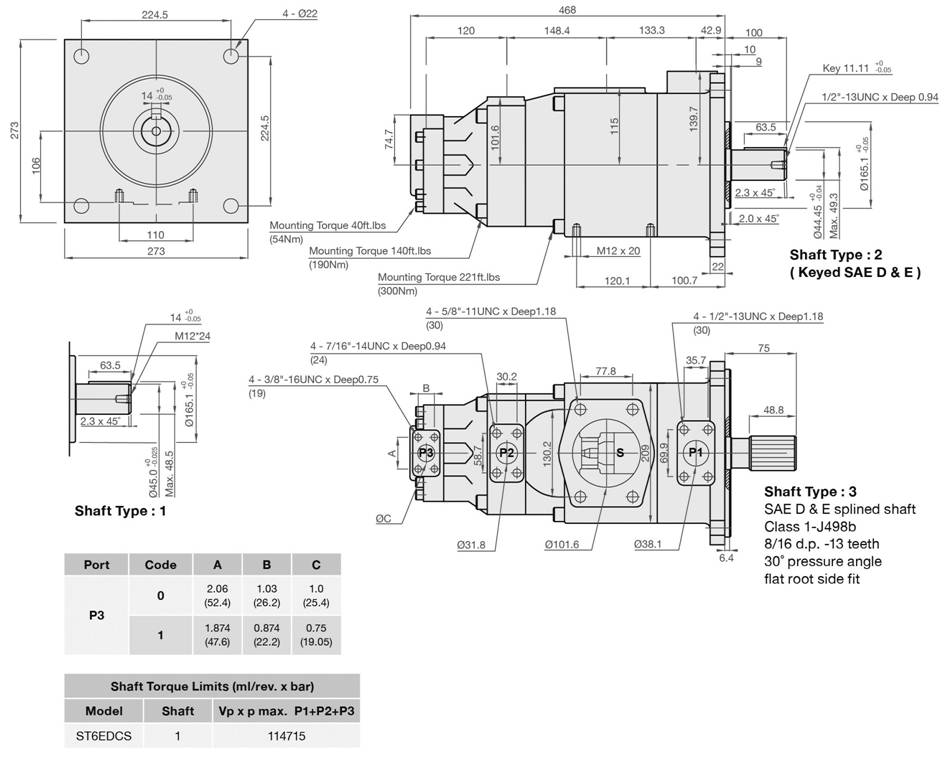

c. Shaft
Type :
1:keyed G45N-ISO 3019-2
2:keyed SAE D & E
3:spline SAE D & E
d. Direction
of Rotation ( Viewed from Shaft Side ) :
R:clockwise direction
L:counter clockwise direction

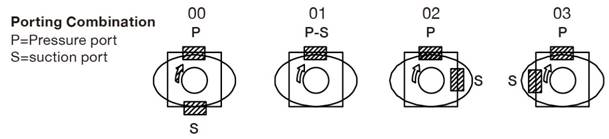

e. Porting
Combination :
00:standard
f.
Design Number : C
g. Seal Class :
1:S1 (for mineral oil)
4:S4 (for fire resistant fluids)
5:S5 (for mineral oil and fire resistant fluids)
h. Mounting (Pump) :
P:pedestal mounting
F:face mounting
i.
Mounting w/connection Variables :
0:P3=1" SAE
1:P3=3/4" SAE
|
