MODEL SPEC.
|
|
|
Model
|
Displacement
( cm3/rev )
|
Max. Pressure
( kgf/cm2 )
|
Speed
( r.p.m. )
|
|
SPVD-00B
|
8x2
|
24.5
|
2800
|
|
SPVD-0B
|
12x2
|
24.5
|
2800
|
|
SPVD-1B
|
17x2
|
24.5
|
2700
|
|
SPVD-2B
|
25x2
|
24.5
|
2600
|
|
SPVD-3B
|
39x2
|
32.0
|
2200
|
|
SPVD-00B
|
8x2
|
24.5
|
2800
|
|
Model
|
Optional
Accessories
|
Excavator
( ton )
|
Weight
( kg )
|
|
SPVD-00B
|
G,
P
|
~
1.5
|
9
|
|
SPVD-0B
|
G,
P, B
|
~
2.5
|
13
|
|
SPVD-1B
|
G,
P, B
|
~
3.5
|
15
|
|
SPVD-2B
|
G,
P, B
|
~
5.5
|
20
|
|
SPVD-3B
|
G,
P, B
|
~
8.0
|
27
|
|
SPVD-00B
|
G,
P
|
~
1.5
|
9
|
|
Optional Accessories :
G : with 1 or 2 gear pumps ( P3 pump
pressure: 20.6MPa, pilot P4 pump pressure: 3.9MPa )
P : with override control mode
B : with valve plate ( with 2
solenoid valves, overflow valve for P4 pump )
|
|
SYMBOLS
|
|
|
|
|
|

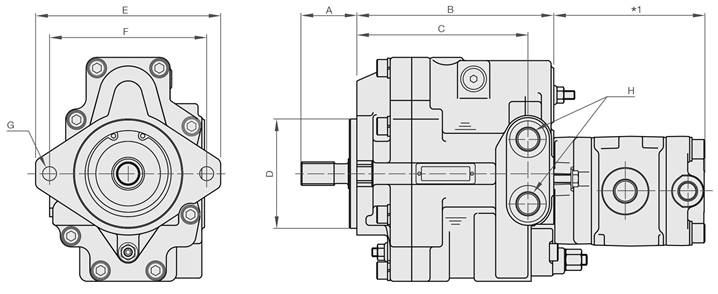

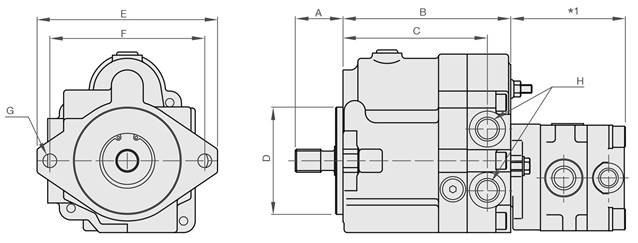

DIMENSION (UNIT
: mm)
|
|
|
SPVD-00B, 0B, 1B
SPVD- 2B,
3B
|
|
