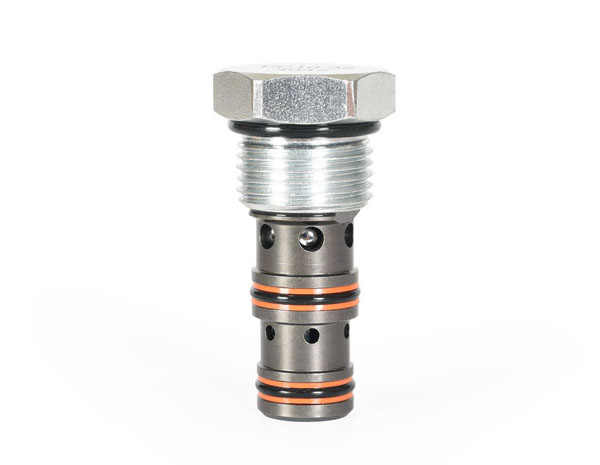

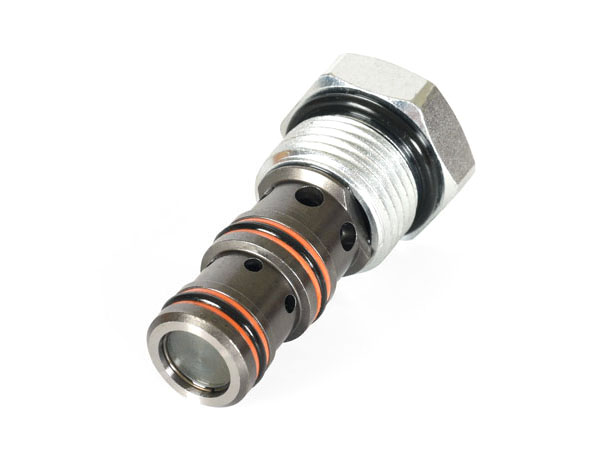

MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Flow
(l/min )
Pilot Ratio
PC08-32
SAE-10-3
240
30.2
2:1
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Weight
( kg )
0.25
33.9
0.095
* Check bias spring : 2.07 bar (30psi)
* Operating temperature : -40 ~ 120°C ( -40 ~ 248°F )
ORDER CODES
PC 10 - 32 - N - 30
a b - a - c - d
a. Model Name : PC-32
b. Valve Size : 10
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
d. Bias Spring :
30:2.1bar ( 30psi )
100:6.9bar ( 100psi )
SYMBOLS
PERFORMANCE CURVES

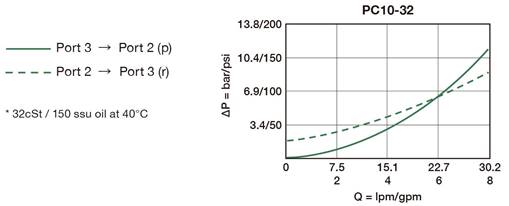

Pressure Drop
DIMENSION (UNIT : mm)

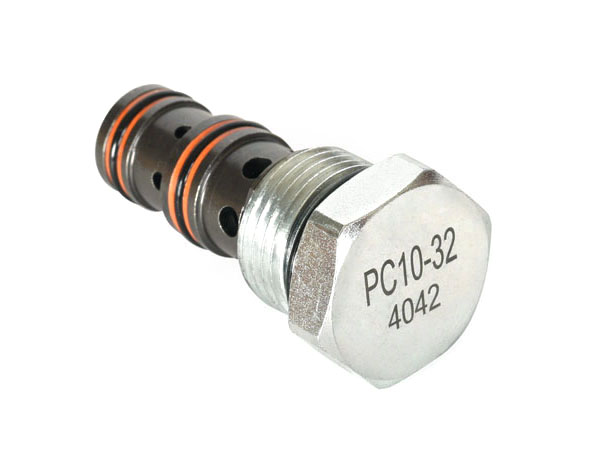

PC10-32
