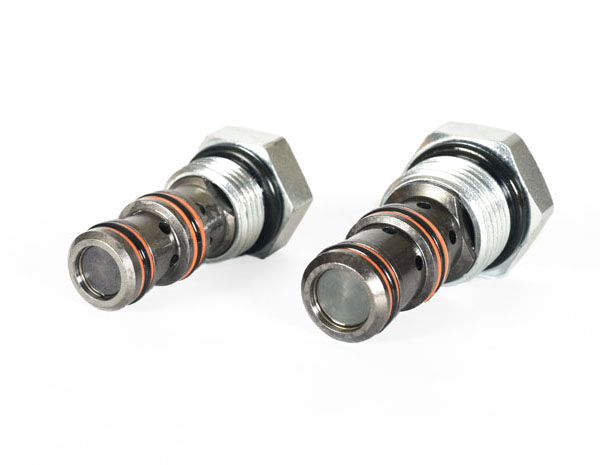

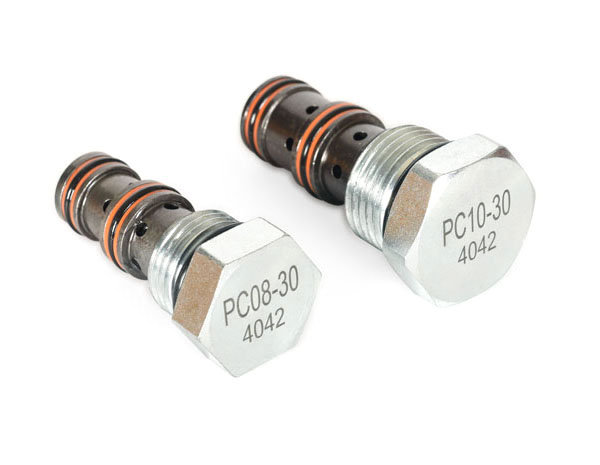

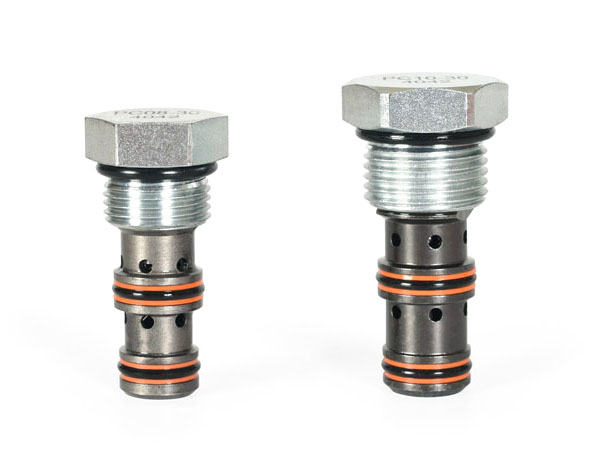

MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Flow
(l/min )
Pilot Ratio
PC08-30
SAE-08-3
240
28.2
3:1
PC10-30
SAE-10-3
30.2
4:1
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Weight
( kg )
0.10
27.1
0.065
33.9
0.090
* Check bias spring : 2.07 bar (30psi)
* Operating temperature : -40 ~ 120°C ( -40 ~ 248°F )
ORDER CODES
PC 08 - 30 - N - 25
a b - a - c - d
a. Model Name : PC-30
b. Valve Size : 08, 10
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
d. Bias Spring (PC08-30) :
25:1.7bar ( 25psi )
70:4.8bar ( 70psi )
90:6.2bar ( 90psi )
120:8.2bar ( 120psi )
270:18.3bar ( 270psi )
d. Bias Spring (PC10-30) :
30:2.1bar ( 30psi )
SYMBOLS

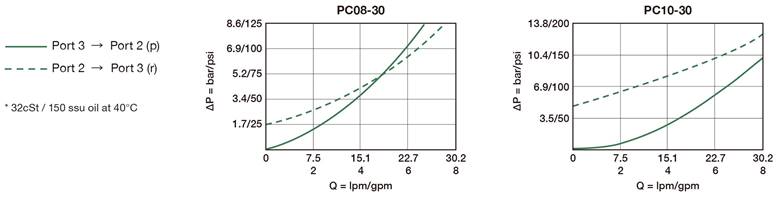

PERFORMANCE CURVES
Pressure Drop
DIMENSION (UNIT : mm)
