MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Flow
(l/min )
PCS4-10
SAE-10-4
210
38
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Weight
( kg )
82
33.9
0.145
* Operating temperature : -40 ~ 120°C ( -40 ~ 248°F )
ORDER CODES
PCS4 - 10 - V - 40
a - b - c - d
a. Model Name : PCS4
b. Valve Size : 10
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
d. Bias Spring :
40:2.8bar ( 40psi )
80:5.5bar ( 80psi )
160:11.0bar ( 160psi )
SYMBOLS

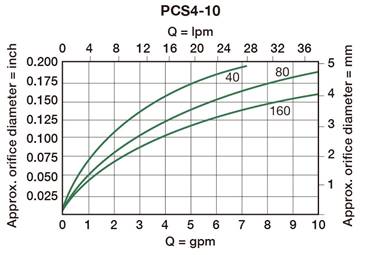

PERFORMANCE CURVES
Controlled Flow
* 21.8cSt / 150 ssu oil at 49°C
DIMENSION (UNIT : mm)
