MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Flow
(l/min )
Pilot Ratio
DC08-40
SAE-08-4
240
19
3 : 1
DC10-40
SAE-10-4
30.3
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Weight
( kg )
0.25
27.1
0.08
-
33.9
0.12
ORDER CODES
DC 08 - 40 - N - 25
a b - a - c - d
a. Model Name : DC-40
b. Valve Size : 08, 10
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
d. Bias Spring :
25:1.7 bar ( 2.5 psi)
SYMBOLS
PERFORMANCE CURVES

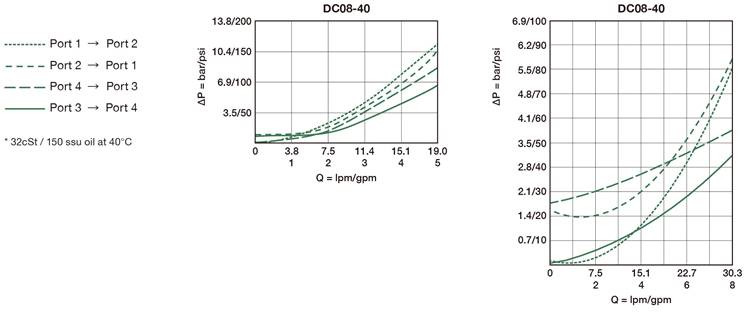

Pressure Drop
DIMENSION (UNIT : mm)
