MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Proof Pressure
Flow
(l/min )
MR10-31
SAE-10-3
240
350
37.9
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
164
33.9
-40 ~ 120°C
( -40 ~ 248°F )
0.14
ORDER CODES
MR 10 - 31 - N
a b - a - c
a. Model Name : MR-31
b. Valve Size : 10
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
SYMBOLS

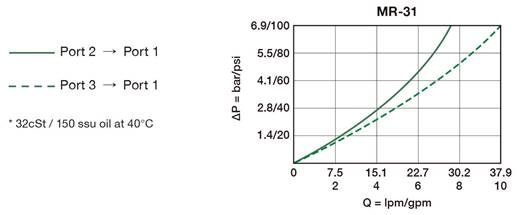

PERFORMANCE CURVES
Pressure Drop
DIMENSION (UNIT : mm)
