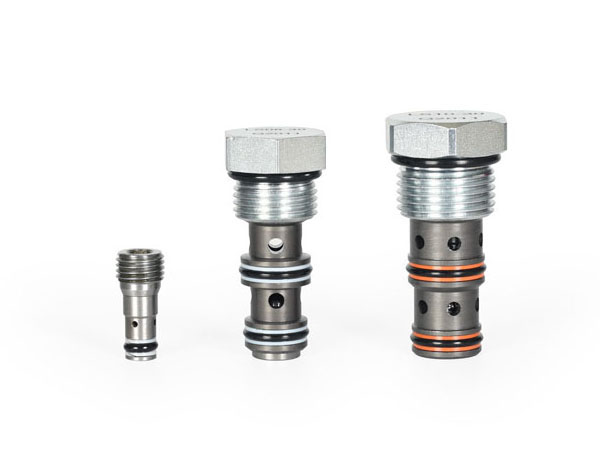

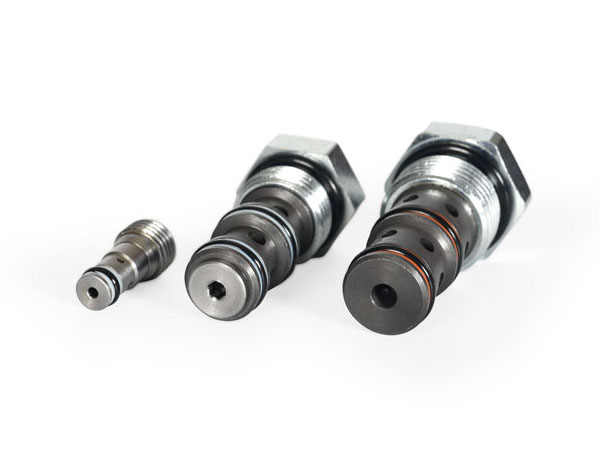

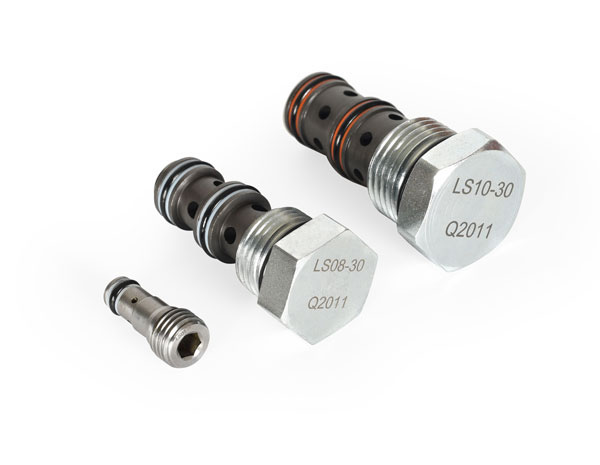

Load Shuttle Valve (LS-30)

MODEL SPEC.

Model	Cavity	Operating Pressure ( bar )	Proof Pressure ( bar )	Flow (l/min )
LS04-B30	SAE-04-3	240	350	4.8
LS08-30	SAE-08-3	240	390	18.9
LS10-30	SAE-10-3	240	390	30.2

Model	Internal Leakage (cc/min )	Installation Torque ( Nm )	Operating Temperature	Weight ( kg )
LS04-B30	0.25	5.4 ~ 6.7	-40 ~ 120°C ( -40 ~ 248°F )	0.01
LS08-30	0.25	27.1		0.065
LS10-30	0.25	33.9		0.085

ORDER CODES

LS 08 - 30 - N

a b - a - c

a. Model Name : LS04-B30, LS-30

b. Valve Size : 04, 08, 10

c. Material of Seal :

N:buna-N

V:viton

E:EPDM

H:HNBR

U:polyurethane

SYMBOLS

PERFORMANCE CURVES

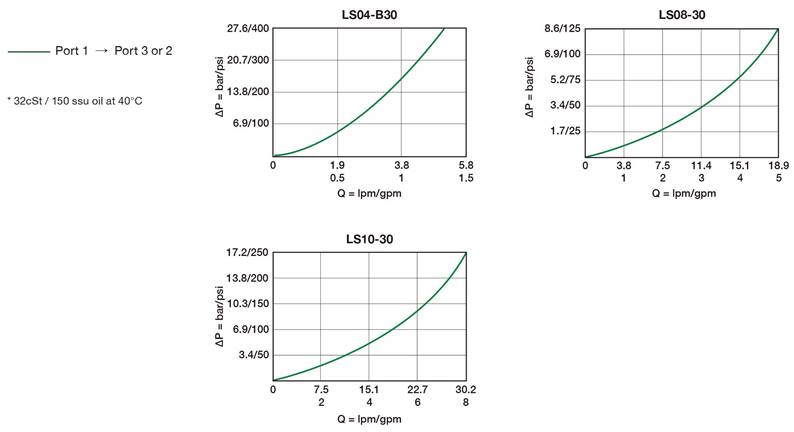

Pressure Drop

DIMENSION (UNIT : mm)

LS04-B30

LS08-30

LS10-30
