MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Proof Pressure
Flow
(l/min )
CV08-21
SAE-08-2
2403
350
30.2
CV10-21
SAE-10-2
210
56
CV12-21
SAE-12-2
240
113.6
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
0.25
27.1
-40 ~ 120°C
( -40 ~ 248°F )
0.053
0.1
33.9
0.08
47.5
0.165
ORDER CODES
CV 10 - 21 - N - 05
a b - a - c - d
a. Model Name : CV-21
b. Valve Size : 08, 10, 12
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
d. Bias Spring :
none
25
1.75bar ( 25psi )
SYMBOLS

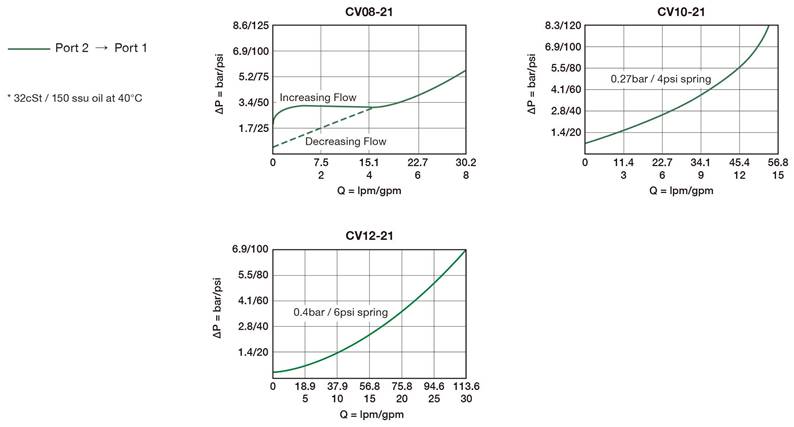

PERFORMANCE CURVES
Pressure Drop
DIMENSION (UNIT : mm)
