MODEL SPEC.
Model
Cavity
Capacity
( l/min )
Max. Pressure
( kgf/cm2 )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
LS-083
T083
15
300
30/40
-35 ~ 100°C
( -31 ~ 212°F )
0.06
LS-103
T103
30
40/50
0.10
ORDER CODES
LS - 083 - XXN
a - b - c d
a. Model Name : LS
b. Valve Size & Cavity : 083, 103
c. Control Manner :
X:unadjustable
d. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
SYMBOLS
PERFORMANCE CURVES

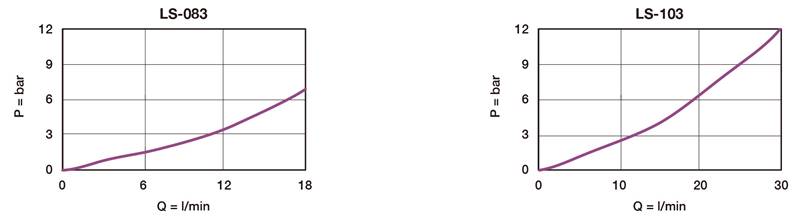

Typical Pressure Drop

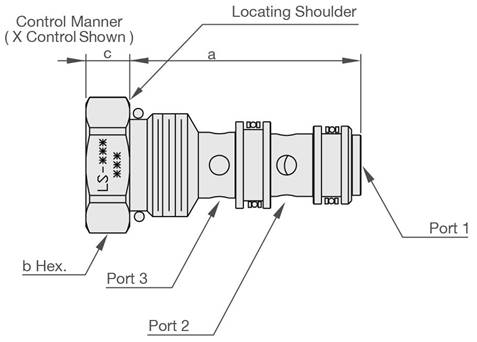

DIMENSION (UNIT : mm)
a
b
c
X
42.2
22.4
8
Ls-103
46.0
25.4
CAVITIES TOOLING
Click Here for < Cavities Tooling of Cartridge Valve >
