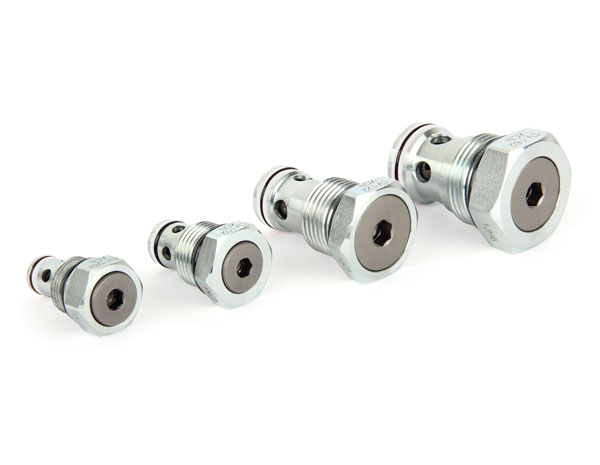

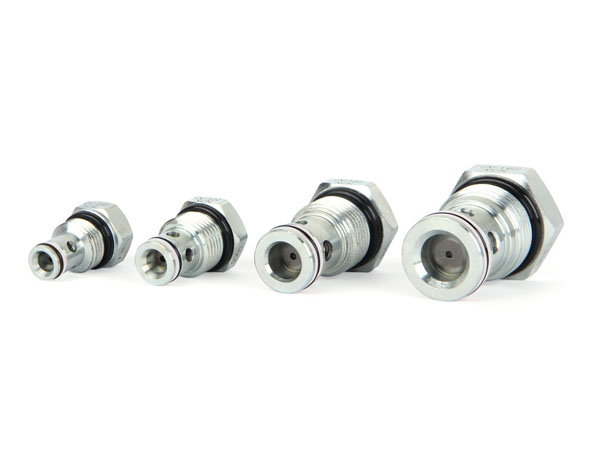

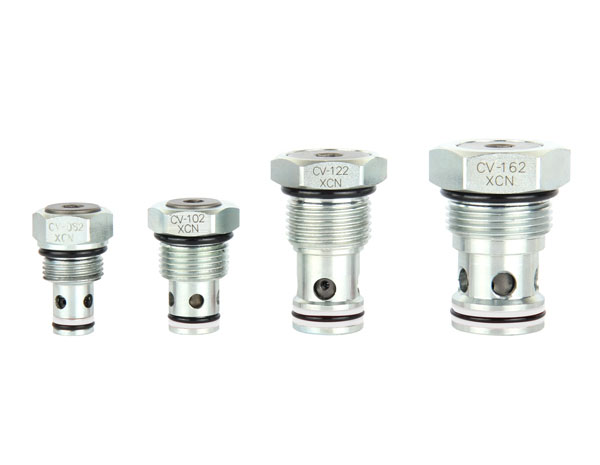

MODEL SPEC.
Model
Cavity
Capacity
( l/min )
Max. Pressure
( kgf/cm2 )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
CV-082
T082
30
300
40/50
-35 ~ 100°C
( -31 ~ 212°F )
0.06
CV-102
T102
50
0.09
CV-122
T122
80
0.15
CV-162
T162
150
0.27
ORDER CODES
CV - 082 - XAN
a - b - c d e
a. Model Name : CV
b. Valve Size & Cavity : 082, 102, 122, 162
c. Control Manner :
X:unadjustable
d. Cracking Pressure :
A:0.3 bar
C:2.0 bar
E:5.0 bar
e. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
SYMBOLS

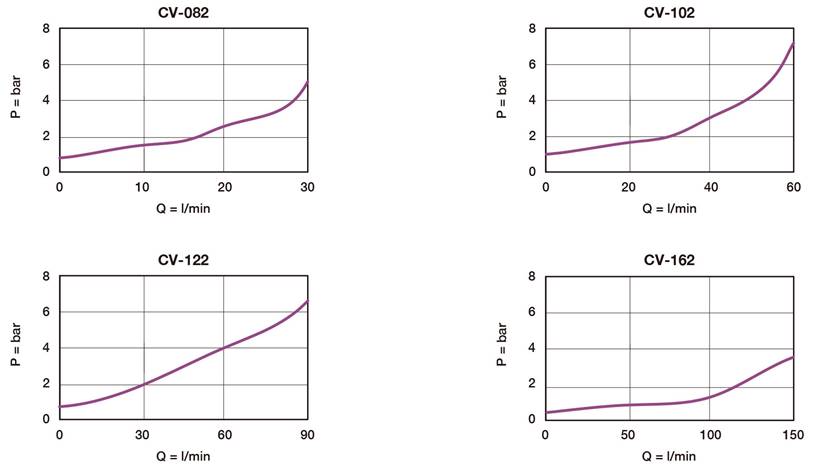

PERFORMANCE CURVES
Typical Pressure Drop

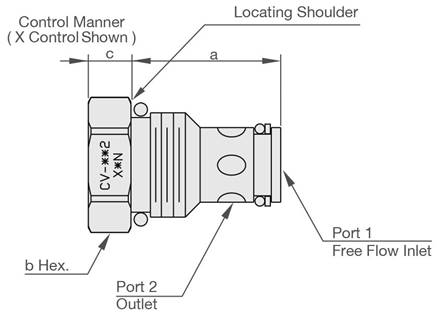

DIMENSION (UNIT : mm)
a
b
c
X
27.7
22.4
7.9
31.8
25.4
46.0
9.5
44.5
38.1
14.0
CAVITIES TOOLING
