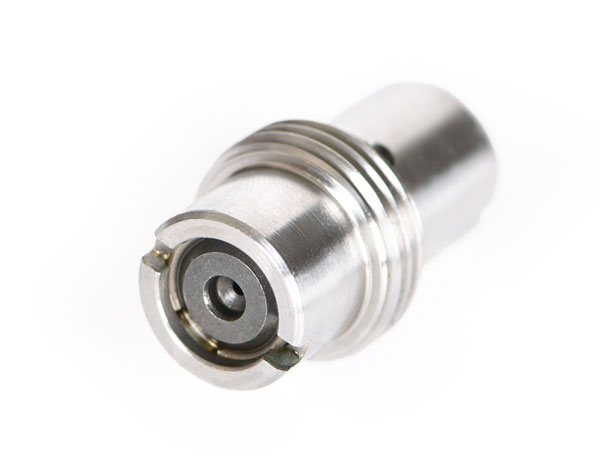

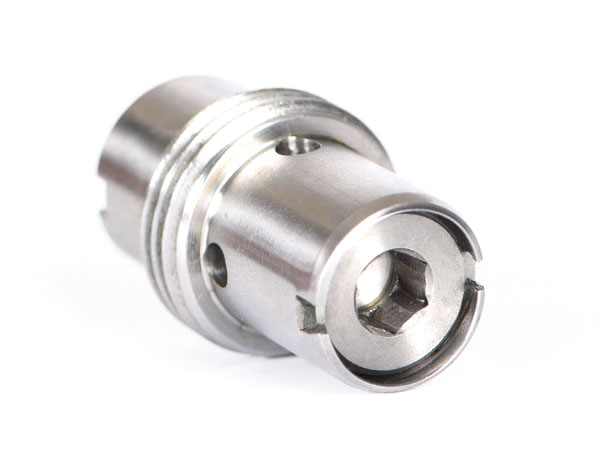

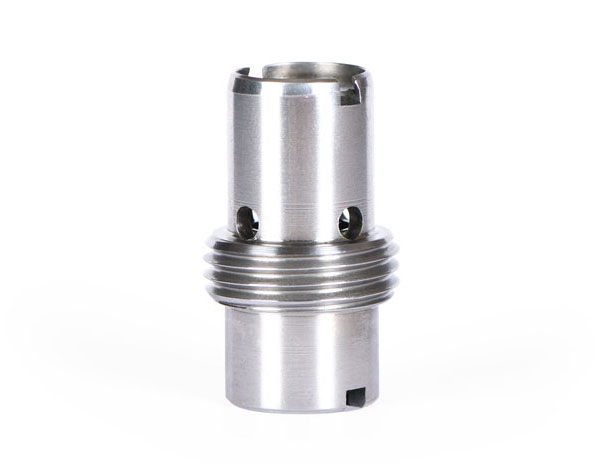

MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Flow
( l/min )
Weight
( kg )
VSK2-M2
M18 * 1.5
320
15
0.025
* Operating temperature : -30 ~ 120°C ( -22 ~ 248°F )
Approximate Flow Rates Corresponding to Orifice Diameter
Orifice Diameter
( mm/100 )
Flow Range at 32bar *2
55
0.3 ~ 0.6
180
5.6 ~ 7.1
80
1.4 ~ 1.7
210
8.5 ~ 10.8
100
1.8 ~ 2.4
230
10.7 ~ 13.3
120
3.1 ~ 4.0
260
12.0 ~ 16.4
160
5.5 ~ 6.5
*2 Adjusted to customer spec. at manufacturer
ORDER CODES
VSK 2 - M2 - 100
a b - c - d
a. Model Name : VSK
b. Valve Size :
2:screw-in cartridg
c. Cavity :
M2:M18 * 1.5
d. Orifice Diameter (mm/100) :
55, 80, 100, 120, 160, 180, 210, 230, 260
SYMBOLS
PERFORMANCE CURVES

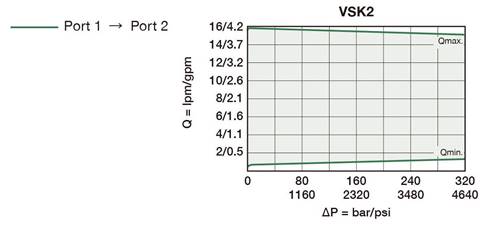

Regulated Flow as a Function of Valve Pressure Drop for Individual Orifice Diameters

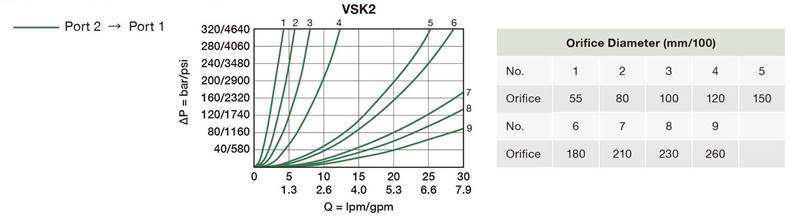

Pressure Drop Related to Flow Rate
* 32cSt / 150 ssu oil at 40°C
DIMENSION (UNIT : mm)

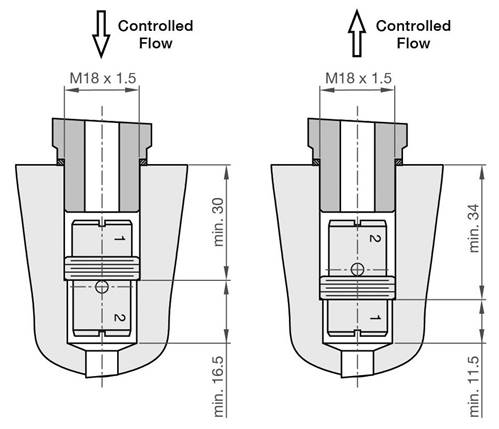

CAVITY TOOLING (UNIT : mm)
