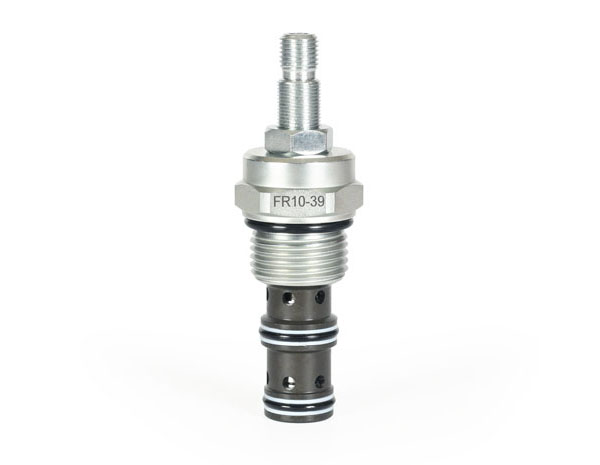

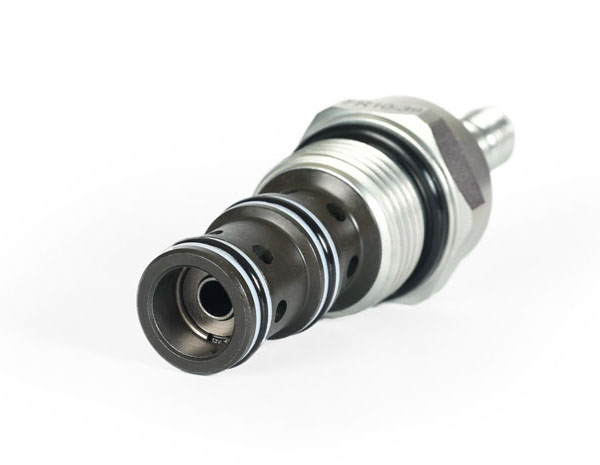

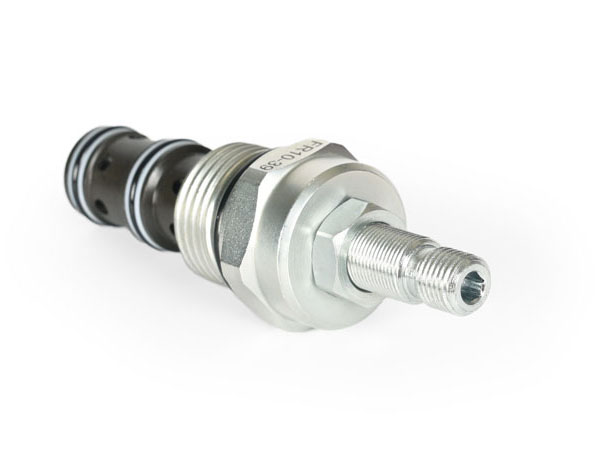

MODEL SPEC.
Model
Cavity
Operating Pressure
( bar )
Proof Pressure
Flow
(l/min )
FR10-39
SAE-10-3
240
345
3-ported : 0 ~ 38
2-ported : 0 ~ 34
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
0.38
33.9
-40 ~ 120°C
( -40 ~ 248°F )
0.135
ORDER CODES
FR 10 A - 39 - N
a b c - a - d
a. Model Name : FR-39
b. Valve Size : 10
c. Adjustment Option :
A:1/4" Hex allen head
B:1 1/2" dia alum. knob
d. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane

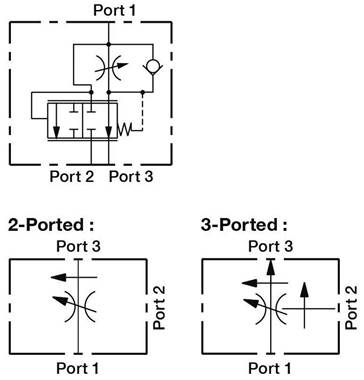

SYMBOLS

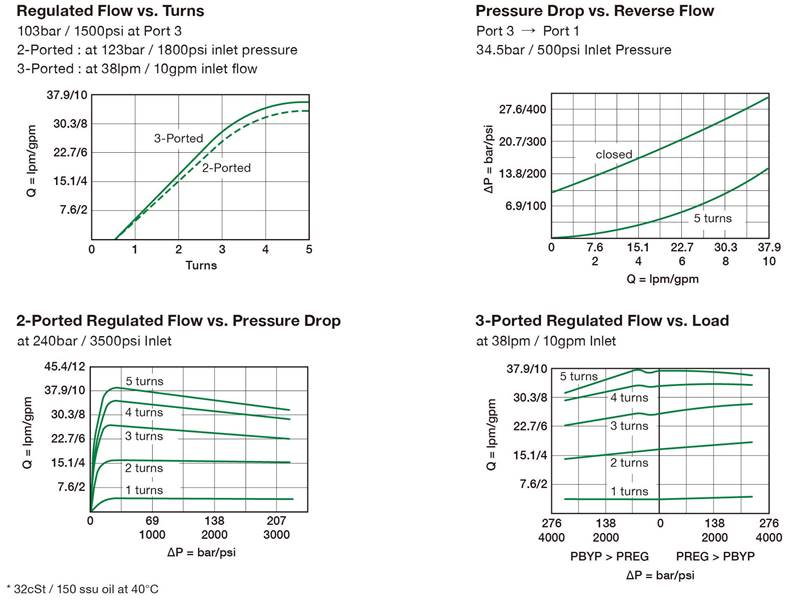

PERFORMANCE CURVES

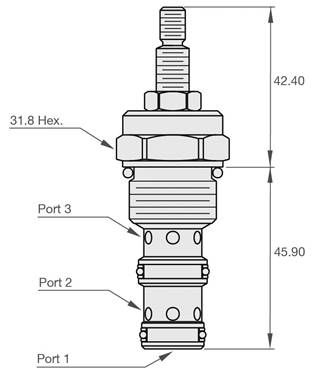

DIMENSION (UNIT : mm)
