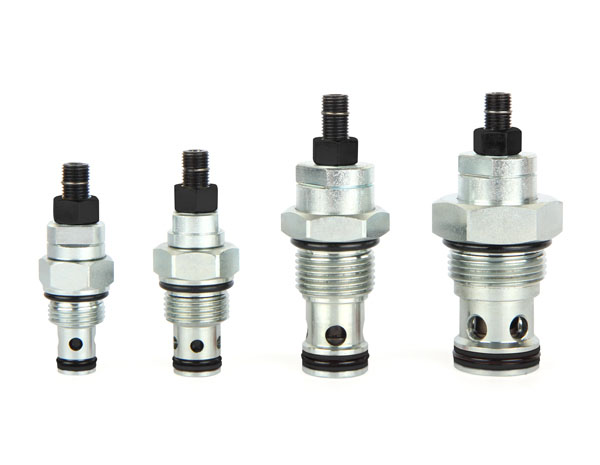

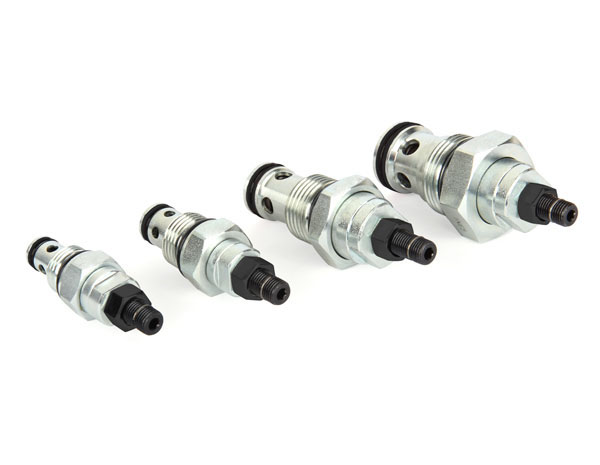

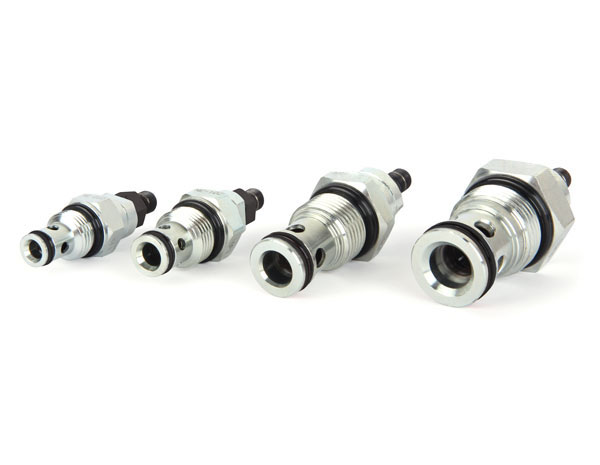

Fully Adjustable Needle (NV)

MODEL SPEC.

Model	Cavity	Capacity ( l/min )	Max. Pressure ( kgf/cm² )	Installation Torque ( Nm )	Operating Temperature	Weight ( kg )
NV-082	ST082	30	300	40/50	-35 ~ 100°C ( -31 ~ 212°F )	0.11
NV-102	ST102	50	300	40/50		0.14
NV-122	ST122	80	300	40/50		0.26
NV-162	ST162	150	300	40/50		0.39

ORDER CODES

NV - 082 - ANA

a - b - c d

a. Model Name : NV

b. Valve Size & Cavity :
082:ST082, 6.5mm

102:ST102, 8.5mm

122:ST122, 12.5mm

162:ST162, 16mm

c. Material of Seal :

N:buna-N

V:viton

E:EPDM

H:HNBR

U:polyurethane

d. Control Manner :

A: adjustable screw

B: control knob

SYMBOLS

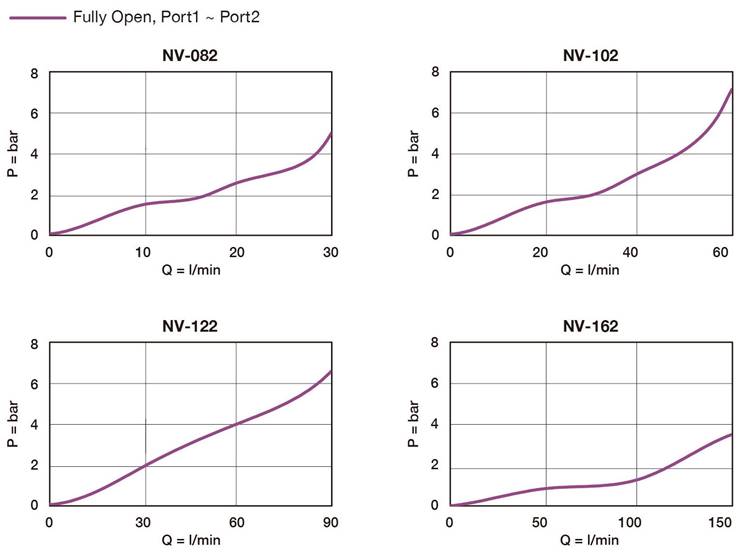

PERFORMANCE CURVES

Typical Pressure Drop

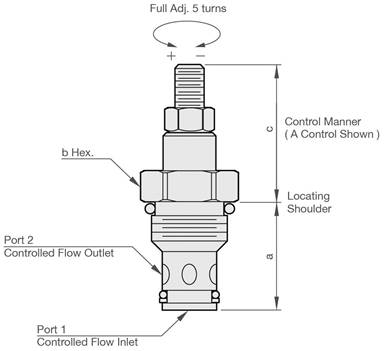

DIMENSION (UNIT : mm)

一張含有寫生, 圖表, 圖畫, 工程製圖的圖片

AI 產生的內容可能不正確。

Model	a	b	c
Model	a	b	A	B
NV-082	27.7	22.4	48	53
NV-102	31.8	25.4	51	56
NV-122	46.0	31.8	53	58
NV-162	44.5	38.1	59	64

CAVITIES TOOLING

Click Here for < Cavities Tooling of Cartridge Valve >
