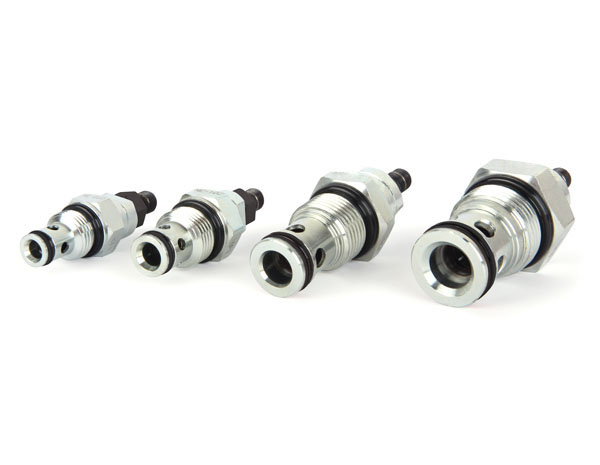

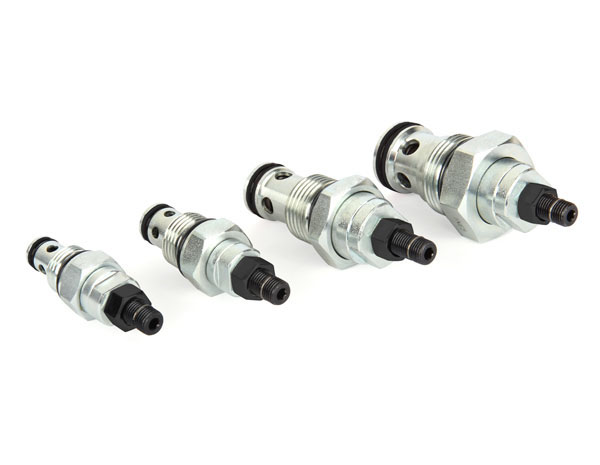

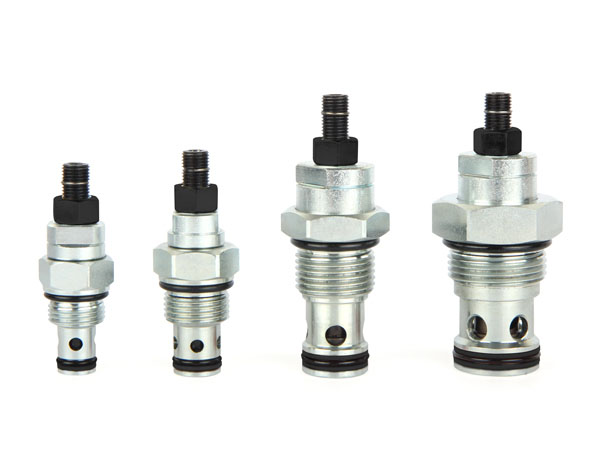

Check with Manual Flow Adjustment (CN)

MODEL SPEC.

Model	Cavity	Capacity ( l/min )	Max. Pressure ( kgf/cm² )	Installation Torque ( Nm )	Operating Temperature	Weight ( kg )
CN-082	ST082	30	300	40/50	-35 ~ 100°C ( -31 ~ 212°F )	0.11
CN-102	ST102	50	300	40/50		0.14
CN-122	ST122	80	300	40/50		0.26
CN-162	ST162	150	300	40/50		0.39

ORDER CODES

CN - 082 - ANA

a - b - c d e

a. Model Name : CN

b. Valve Size & Cavity : 082, 102, 122, 162

c. Cracking Pressure :

A:0.3 bar

C:2.0bar

E:5.0 bar

d. Material of Seal :

N:buna-N

V:viton
E:EPDM

H:HNBR

U:polyurethane

e. Control Manner :

A: adjustable screw

B: control knob

SYMBOLS

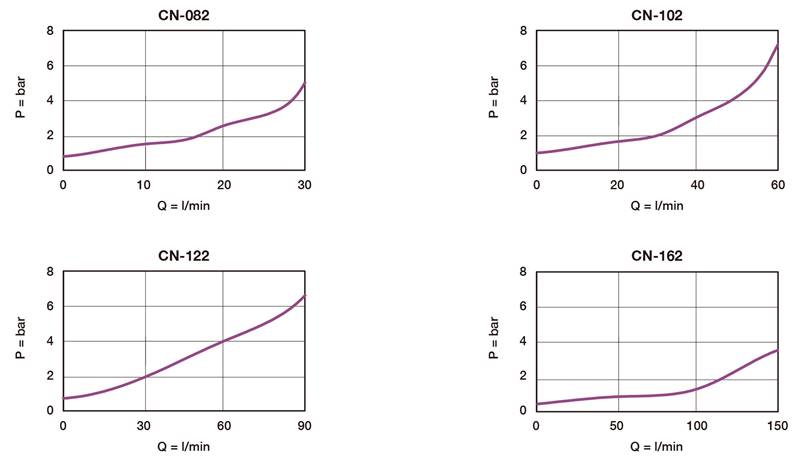

PERFORMANCE CURVES

Typical Pressure Drop

CN_curve

DIMENSION (UNIT : mm)

一張含有圖表, 寫生, 圖畫, 工程製圖的圖片

AI 產生的內容可能不正確。

Model	a	b	c
Model	a	b	A	B
CN-082	27.7	22.4	48	53
CN-102	31.8	25.4	51	56
CN-122	46.0	31.8	53	58
CN-162	44.5	38.1	59	64

CAVITIES TOOLING

Click Here for < Cavities Tooling of Cartridge Valve >
