MODEL SPEC.
Model
Cavity
Capacity
( l/min )
Max. Pressure
( bar )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
SV08-26
SAE-08-2
1
255
27.1
-35 ~ 100°C
( -31 ~ 212°F )
0.26
ORDER CODES
SV08 - 26 - A1 - DR - N
a - b - c - d - e
a. Valve Size : 08
b. Model : 26
c. Voltage (coil) :
A1:115 VAC
A2:230 VAC
D1:12 VDC
D2:24 VDC
d. Connector (coil) :
DG:DIN connector type
DL:wiring type
DR:Deutsch DT04-2P
e. Material of Seal :
N:buna-N
V:viton
SYMBOLS

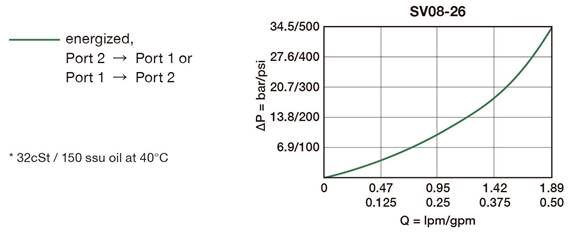

PERFORMANCE CURVES
Typical Pressure Drop

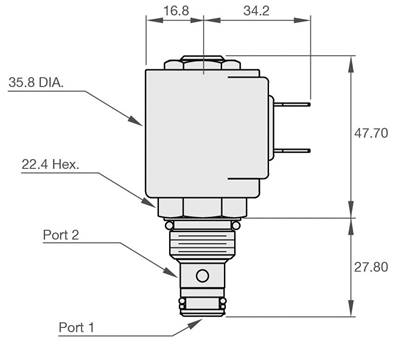

DIMENSION (UNIT : mm)
