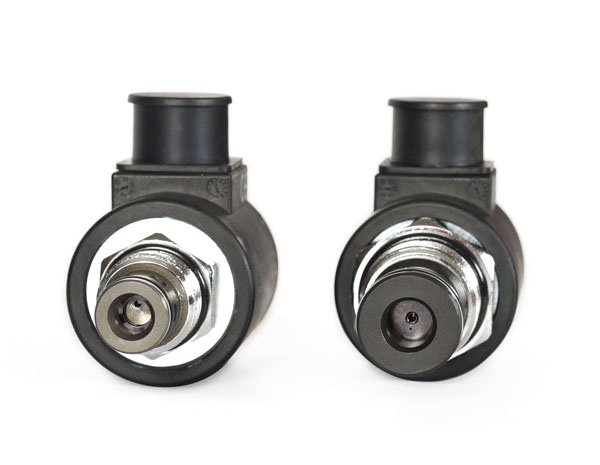

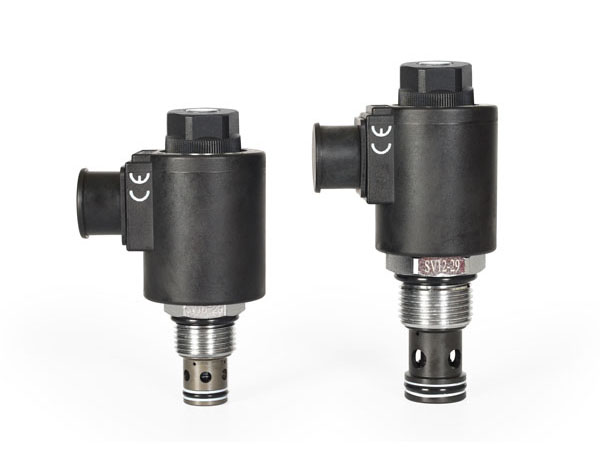

MODEL SPEC.
Model
Cavity
Capacity
( l/min )
Max. Pressure
( bar )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
SV10-29
SAE-10-2
75.7
240
33.9
-35 ~ 100°C
( -31 ~ 212°F )
0.48
SV10-29M
SV12-29
SAE-12-3
113.6
47.4
0.56
SV12-29M
ORDER CODES
SV10 - 29M – D2 - DL - N
a - b c - d - e - f
a. Valve Size : 10, 12
b. Model : 29
c. Control Manner :
none:without manual override
M:manual override
d. Voltage (coil) :
A1:115 VAC
A2:230 VAC
D1:12 VDC
D2:24 VDC
e. Connector (coil) :
DG:DIN connector type
DL:wiring type
DR:Deutsch DT04-2P
f. Material of Seal :
N:buna-N
V:viton
SYMBOLS

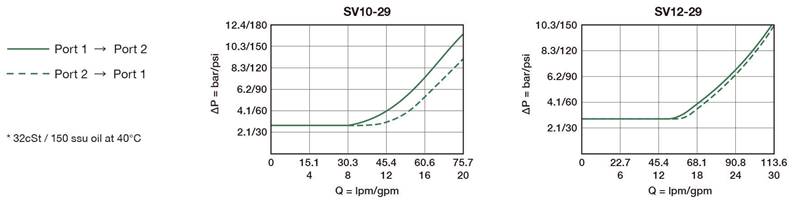

PERFORMANCE CURVES
Typical Pressure Drop

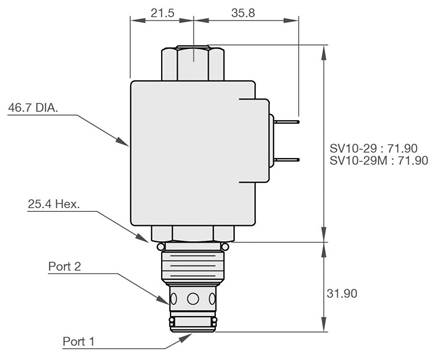

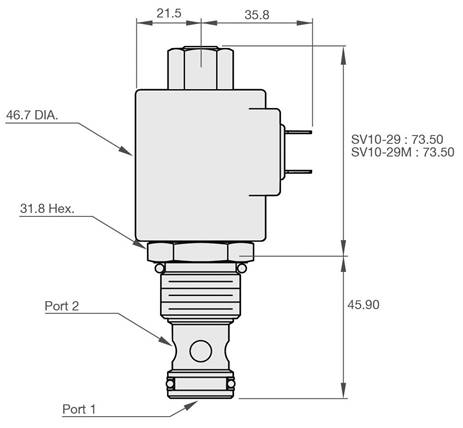

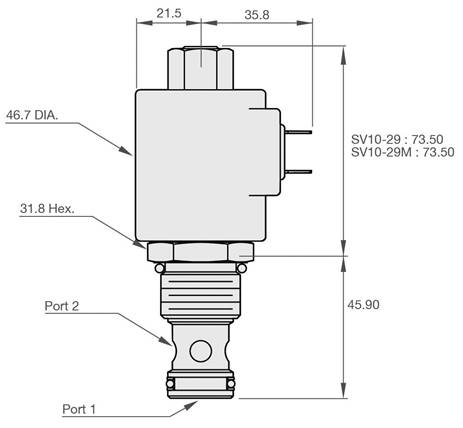

DIMENSION (UNIT : mm)
