SV12
- 23M - A1 - DL - V
a - b c - d -
e - f
a.

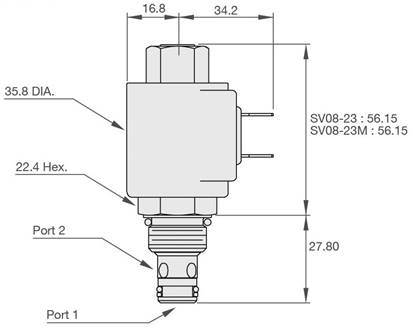

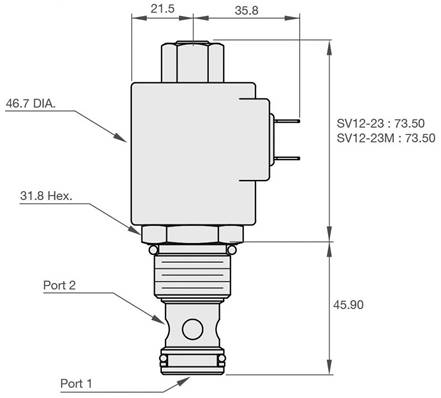

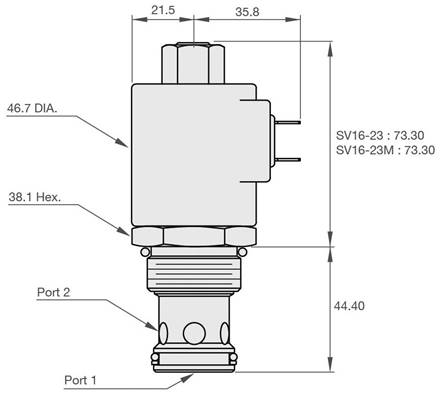

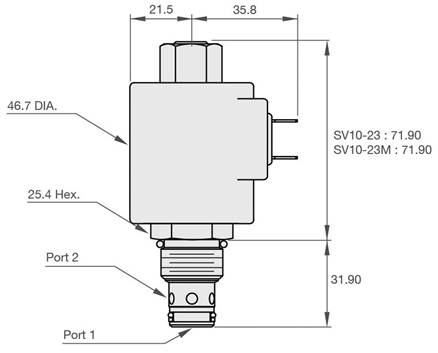

Valve Size : 08, 10, 12, 16
b. Model
: 23
c. Control
Manner :
none:without manual override
M:manual override
d. Voltage
(coil) :
A1:115 VAC
A2:230 VAC
D1:12 VDC
D2:24 VDC
e. Connector
(coil) :
DG:DIN connector type
DL:wiring type
DR:Deutsch DT04-2P
f. Material
of Seal :
N:buna-N
V:viton
|
