MODEL SPEC.
Model
Cavity
Tube
Diameter
Capacity
( l/min )
Max. Pressure
( bar )
Installation Torque
( Nm )
Weight
( kg )
HS-2B
T082
16
28
250
39/51
0.41
JS-2B
T102
50
0.43
LS-2B
T122
100
0.53
PS-2B
T162
150
0.62
ORDER CODES
HS - 2B - 16 - A2
a - b - c - d
a. Cavity :
HS: T082
JS: T102
LS: T122
PS: T162
b. Type of Valve : 2B: normally closed single check reverse flow
c. Tube Diameter : 16
d. Power Source :
A1: RAC110V
A2: RAC220V
D1: DC12V
D2: DC24V
SYMBOLS

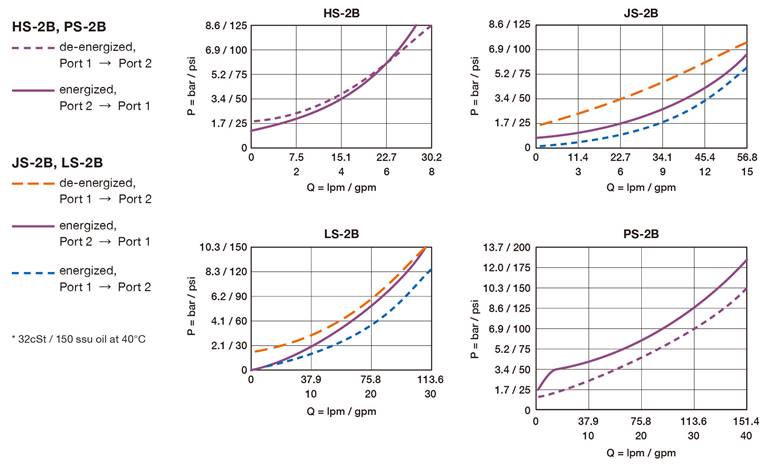

PERFORMANCE CURVES
Typical Pressure Drop

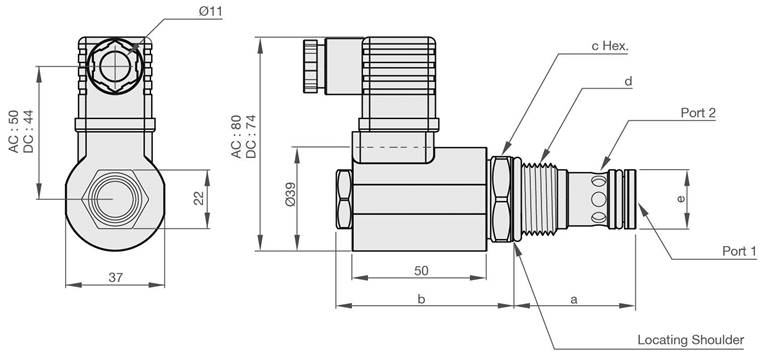

DIMENSION (UNIT : mm)
a
b
c
d
e
64
22
3/4"-16UNF
12.7
32
25.4
7/8"-14UNF
15.8
45
1 1/16"-12UNF
22.2
65
38
1 5/16"-12UNF
28.6
CAVITIES TOOLING
