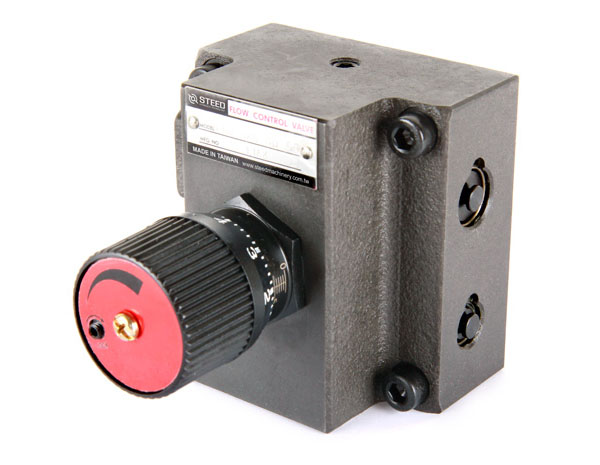

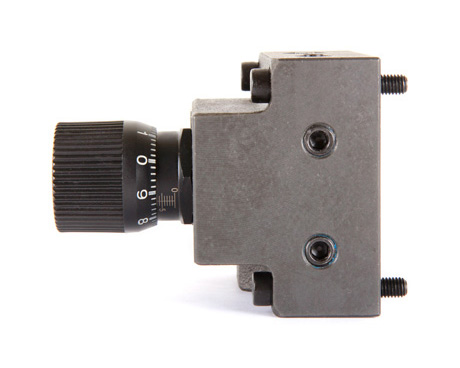

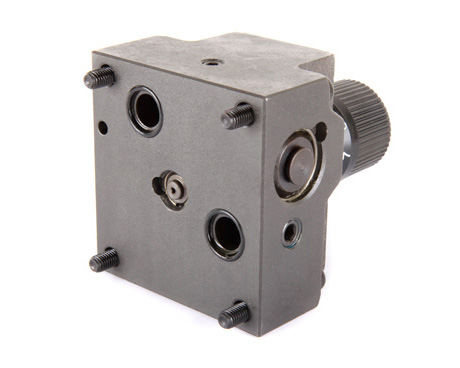

MODEL SPEC.
Model
Max. Metered Flow Capacity
( l/min )
Max. Pressure
( kgf/cm2 )
Weight
( kg )
FG-02G-30
FCG-02G-30
0.05 ~ 30
210
4.1
Attachment :
Screw: M8 L50 - 4 pieces
O-ring: 1B-P18 - 1 set
ORDER CODES
FCG - 02G - 30 - N - 50
a - b c - d - e - f
a. Model Name :
FG:flow control valve
FCG:flow control valve with check valve
b. Valve Size :
02:3/8” PT thread
c. Mounting Type :
G:sub-plate mounted
d. Max. Flow Rate:
30:30l/min
e. Pressure and Temperature Compensated : N
f. Design Number : 50
SYMBOLS
PERFORMANCE CURVES

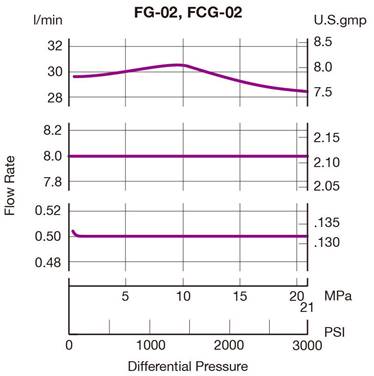

Metred Flow vs. Differential Pressure

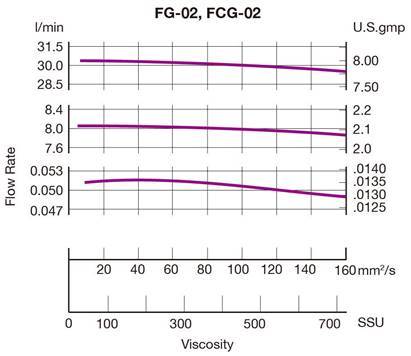

Metred Flow vs. Viscosity

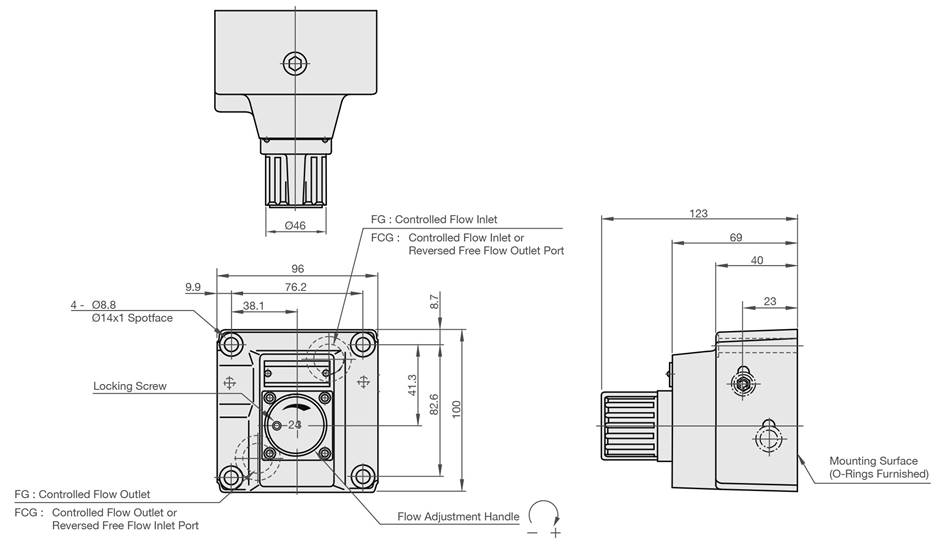

DIMENSION (UNIT : mm)
