MODEL SPEC.
Model
Max. Pressure
( kgf/cm2 )
Pressure Adj. Range
Max. Flow
( l/min )
Weight
( kg )
MRV-02D
210
1: 7~70
2: 35~140
3: 70~210
35
1.53
ORDER CODES
MRV - 02 D - 1
a - b a - c
a. Model Name : MRV-D
b. Thread Connection : 02:1/4"
c. Pressure Adj. Range :
1: 7~70kgf/cm2
2: 35~140kgf/cm2
3: 70~210kgf/cm2
SYMBOLS

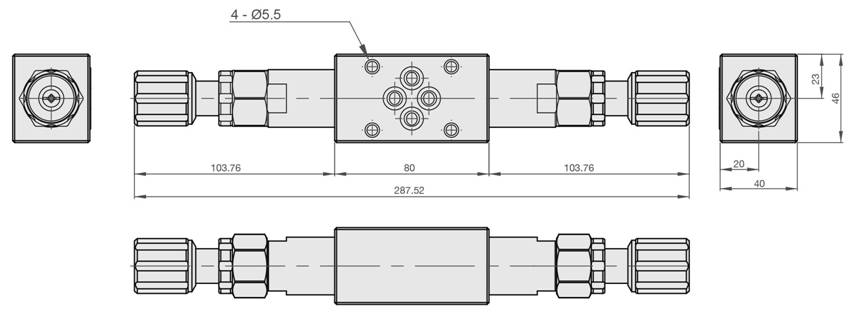

DIMENSION (UNIT : mm)
