MODEL SPEC.
|
|
|
Model
|
Max.
Pressure
(
kgf/cm2 )
|
Max.
Flow
(
l/min )
|
Weight
(
kg )
|
|
MTCV-06
|
210
|
180
|
12.5
|
|
|
|
ORDER CODES
|
|
|
MTCV - 06 - W - I
- 05
a
- b - c - d - e
a. Model
Name :
MTCV
b. Thread
Connection : 06: 3/4"
c. Action Form : A, B, W
d. Moving
Direction :
none:out
I:in
e. Checking
Pressure :
05:0.5 kgf/cm2
50:2.5 kgf/cm2
|
|
|

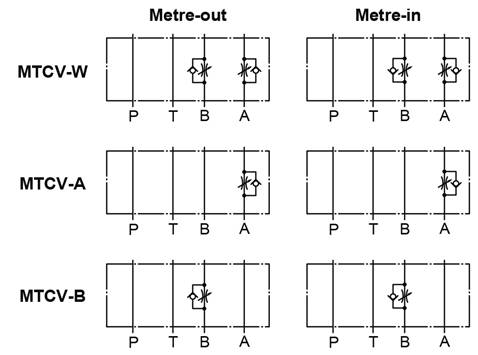

SYMBOLS
|
|
|
|
|
|

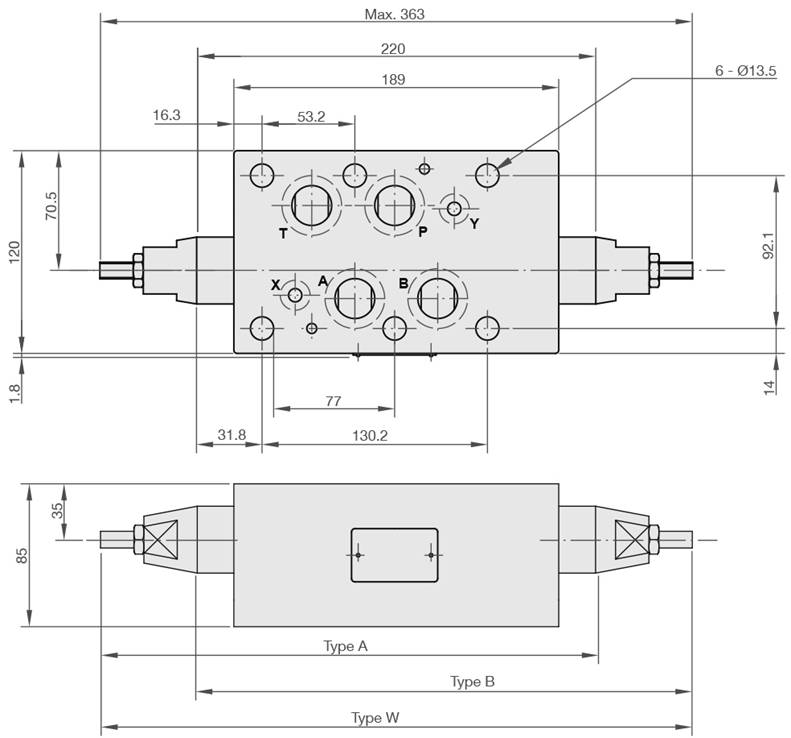

DIMENSION (UNIT : mm)
|
|
|
MTCV-06-A, B, W
|
|
|
|
