MODEL SPEC.
Model
Max. Pressure
( kgf/cm2 )
Max. Flow
( l/min )
Weight
( kg )
MTV-02-P, T
MTCV-02-P
210
35
1.1
ORDER CODES
MTV - 02 - P
a - b - c
a. Model Name : MTV, MTCV
b. Thread Connection : 02:1/4"
c. Action Form : P, T

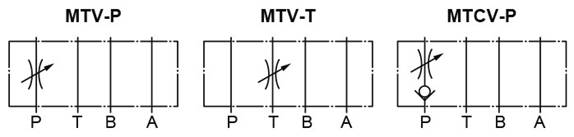

SYMBOLS
DIMENSION (UNIT : mm)
