MODEL SPEC.
Model
Max. Pressure
( kgf/cm2 )
Pressure Adj. Range
Max. Flow
( l/min )
Weight
( kg )
MSCV-03
210
1:8~70
2:35~140
3:70~210
70
4.1
ORDER CODES
MSCV - 03 - B - 2
a - b - c - d
a. Model Name : MSCV
b. Thread Connection : 03:3/8"
c. Action Form : A, B
d. Pressure Adj. Range :
1: 8~70kgf/cm2
2: 35~140kgf/cm2
3: 70~210kgf/cm2

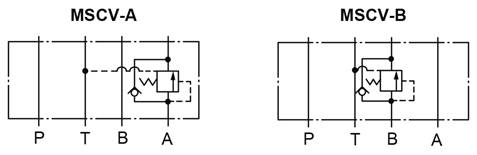

SYMBOLS

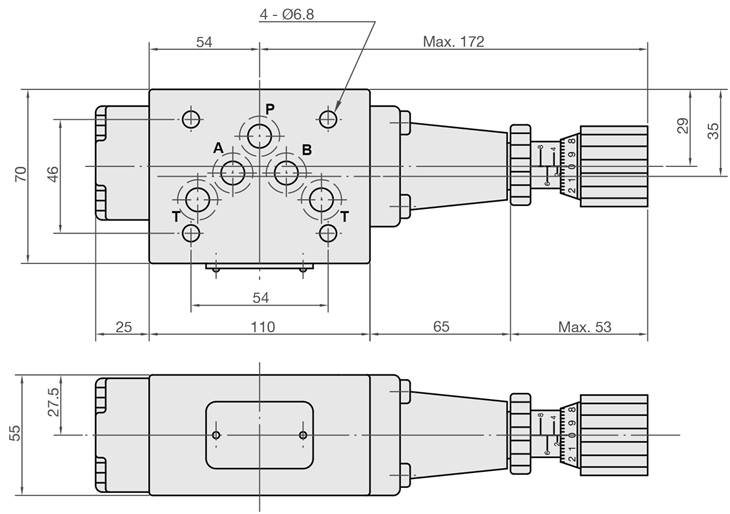

DIMENSION (UNIT : mm)
