MODEL SPEC.
Model
Max. Pressure
( kgf/cm2 )
Pressure Adj. Range
Max. Flow
( l/min )
Weight
( kg )
MBRV-03
210
0: 3~30
1: 8~70
2: 35~140
3: 70~210
70
3.3
ORDER CODES
MBRV - 03 - A - 1
a - b - c - d
a. Model Name : MBRV
b. Thread Connection : 03: 3/8"
c. Action Form : P, B, A
d. Pressure Adj. Range :
0: 3~30kgf/cm2
1: 8~70kgf/cm2
2: 35~140kgf/cm2
3: 70~210kgf/cm2

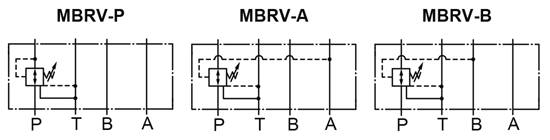

SYMBOLS

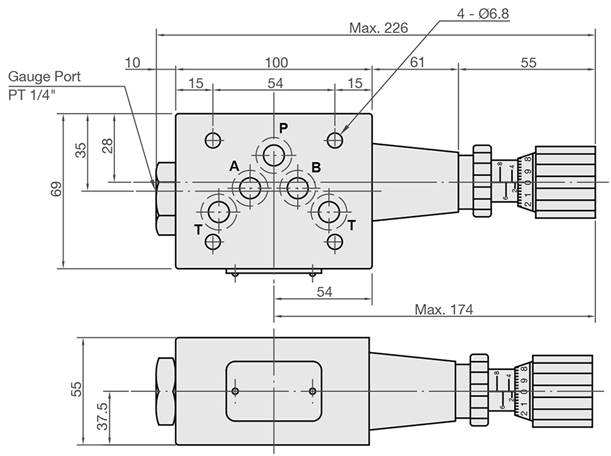

DIMENSION (UNIT : mm)
