MODEL SPEC.
|
|
|
Model
|
Max.
Pressure
(
kgf/cm2 )
|
Pressure
Adj. Range
(
kgf/cm2 )
|
Max.
Flow
(
l/min )
|
Weight
(
kg )
|
|
MRV-06-P, A,
B
|
210
|
1:7~70
2:35~140
3:70~210
|
200
|
11
|
|
|
|
ORDER CODES
|
|
|
MRV - 06 - P - 1
a
- b - c - d
a. Model
Name :
MRV
b. Thread
Connection : 06:3/4"
c. Action Form : P, A, B
d. Pressure Adj.
Range :
1: 7~70kgf/cm2
2: 35~140kgf/cm2
3: 70~210kgf/cm2
|
|
|

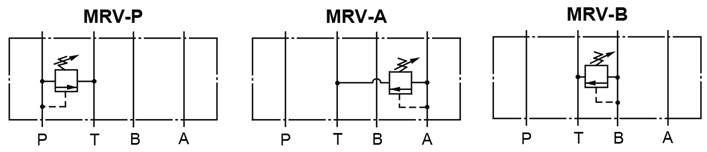

SYMBOLS
|
|
|
|
|
|

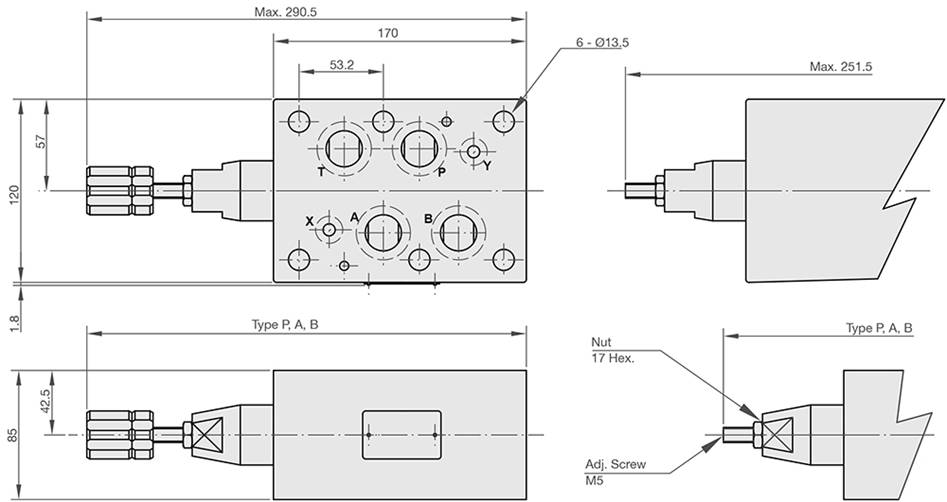

DIMENSION (UNIT : mm)
|
|
|
MRV-06
|
|
|
|
