MODEL SPEC.
Model
Max. Pressure
( kgf/cm2 )
Pressure Adj. Range
Max. Flow
( l/min )
Weight
( kg )
MRV-03-P, A, B
210
1:7~70
2:35~140
3:70~210
70
3.2
MRV-03-W
4.5
ORDER CODES
MRV - 03 - P - 1
a - b - c - d
a. Model Name : MRV
b. Thread Connection : 03:3/8"
c. Action Form : P, A, B, W
d. Pressure Adj. Range :
1: 7~70kgf/cm2
2: 35~140kgf/cm2
3: 70~210kgf/cm2

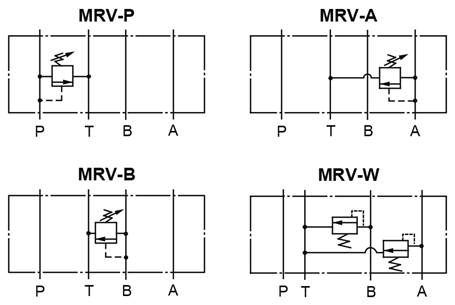

SYMBOLS
DIMENSION (UNIT : mm)

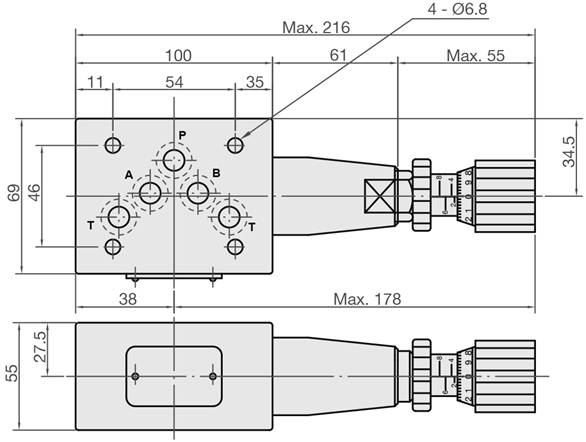

MRV-03-P
