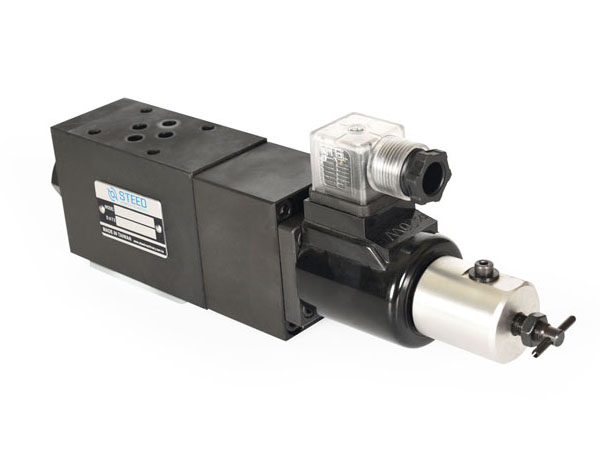

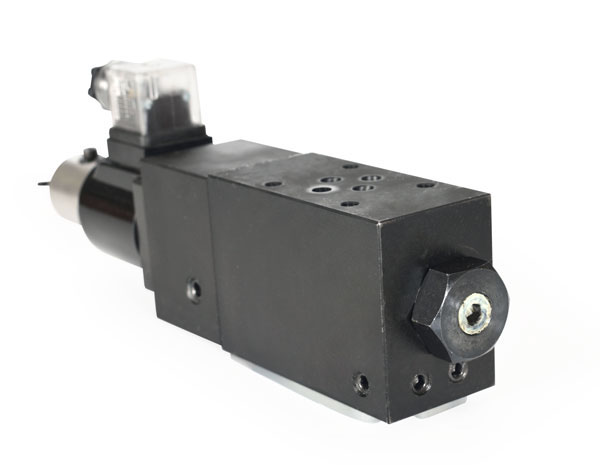

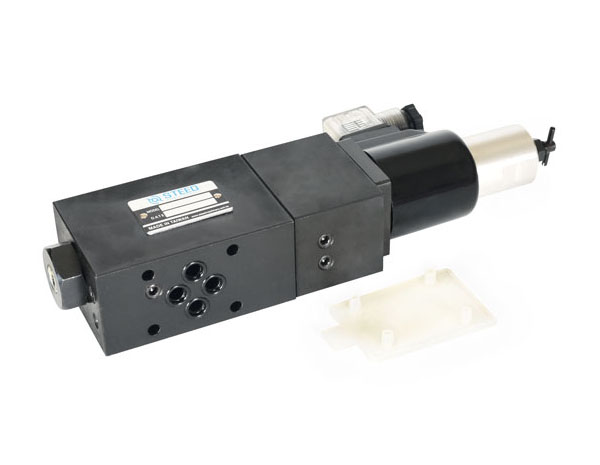

EOG-G01

EOG - G01 - P  1

    a   -   b  -  c  d

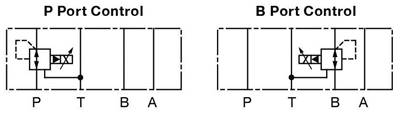

a.  Model Name : EOG

b.  Thread Connection :

         G01:1/4”

c.   Control Port :

         P:P Port

         B:B Port

d.   Pressure Adjusting Range :

         B:3.1~25.5 kgf/cm² ( 0.3~2.5 MPa )

         1:4~71 kgf/cm² ( 0.4~7 MPa )

         2:6~143 kgf/cm² ( 0.6~14 MPa )

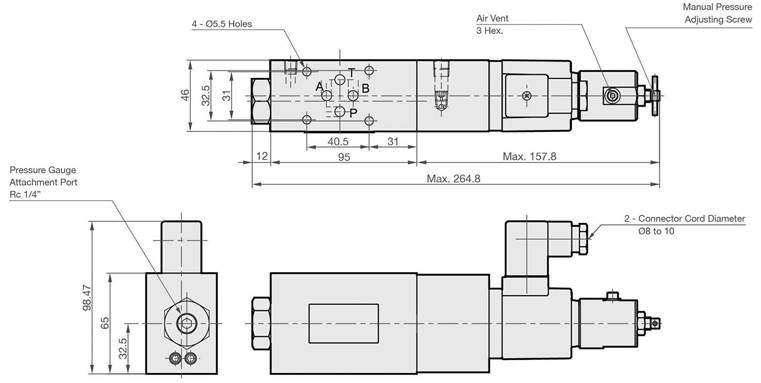

1. Air Bleeding

To enable proper pressure control, loosen the air vent when starting up the pump in order to bleed any air from the pump, and fill the inside of the solenoid with hydraulic operating fluid.

2. Mounting Method

  Mounting on a vertical surface causes minimum pressure to increase by 2 kgf/cm² (0.1 MPa).

3. Minimum Control Pressure

  Since this valve has an internal drain system, T port back pressure has an effect on minimum control pressure.

4. Load Capacity

  Make load capacity (valve OUT side capacity) at least 0.5l

5. Use An Operating Fluid That Conforms to The Both of The Following.

Oil temperature : -20 to 70°C.

Viscosity : 12 to 400 mm²/s.

The recommended viscosity range is 15 to 60 mm²/s.

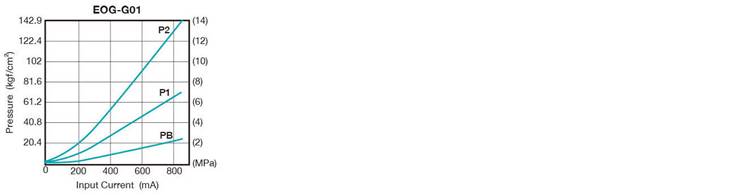

Input Current - Pressure Characteristic

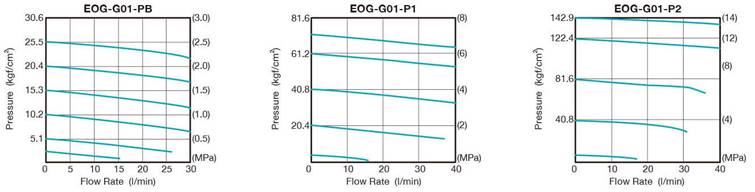

Flow Rate - Pressure Characteristics

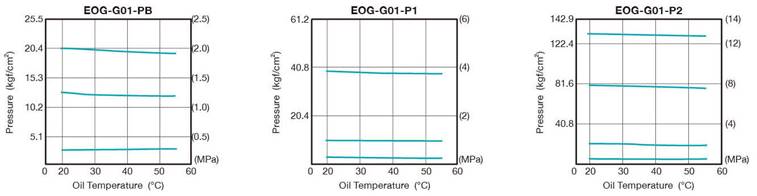

Fluid Temperature Characteristics

* Hydraulic Operating Fluid Viscosity : 32mm²/s

Click Here for < Amplifier TW2085-2 >
