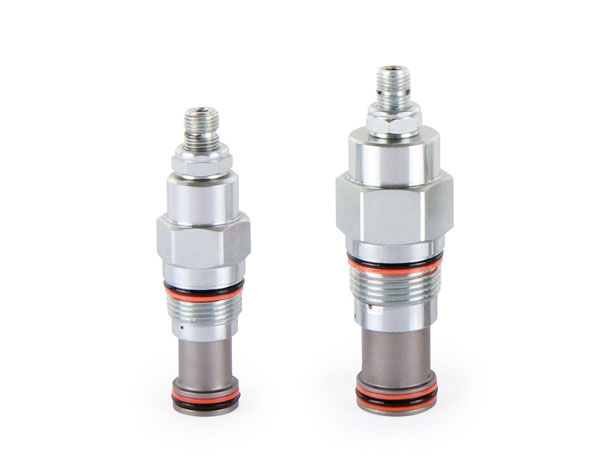

MODEL SPEC.
Model
Cavity
Capacity
( l/min )
Max. Pressure
( kgf/cm2 )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
RB2C
T10A
1
350
45/50
-35 ~ 100°C
( -31 ~ 212°F )
0.15
RB3A
T3A
2
60/70
0.25
ORDER CODES
RB2C - T10A - LAN
a b - c - de f
a. Model Name : RB
b. Capacity :
2C:1 l/min
3A:2 l/min
c. Cavity : T10A, T3A
d. Control Manner :
L:standard screw adjustment
K:hand knob with lock knob
e. Adjustable Range :
A:7~210 bar
B:3.5~105 bar
C:10.5~420 bar
N:5~55 bar
f. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
SYMBOLS
PERFORMANCE CURVES

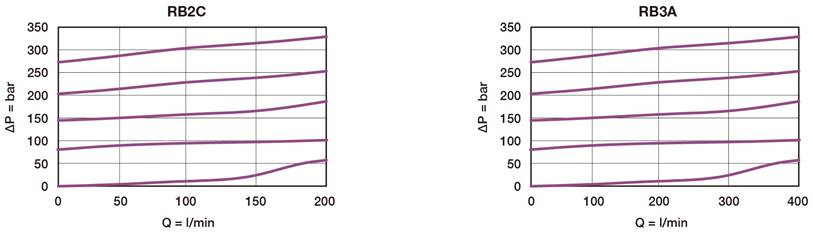

Typical Pressure Rise

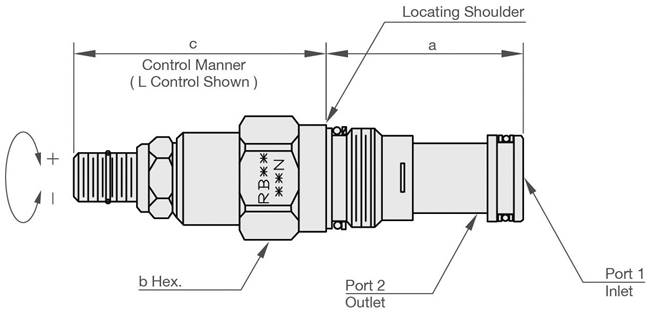

DIMENSION (UNIT : mm)
a
b
c
L
K
39.7
22.2
51
58
47.8
28.6
54
61
CAVITIES TOOLING
Click Here for < Cavities Tooling of Cartridge Valve >
