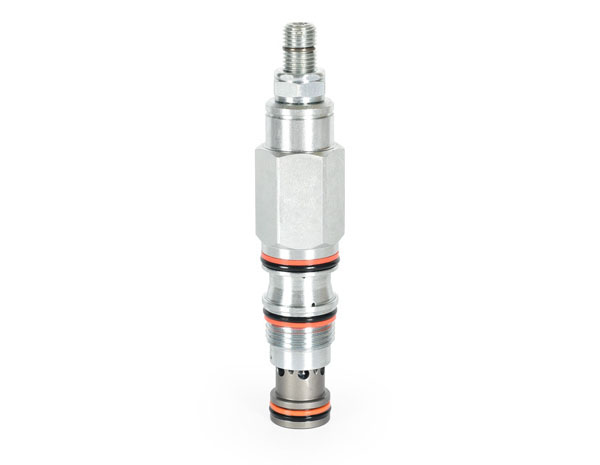

Direct-acting Sequence Valve without Reverse Flow Check (SX)

SX3A - T11A - LAN

  a  b  -     c    - d e f

a.    Model Name : SX

b.    Valve Size : 2A, 3A

c.    Cavity : T11A, T2A

d.   Control Manner :

      L:standard screw adjustment

      K:hand knob with lock knob

e.    Adjustable Range :

      A:35 ~ 210 bar

      B:20 ~105 bar

      C:140 ~ 420 bar

      D:14 ~ 55 bar

f.     Material of Seal :

      N:buna-N

      V:viton

Pressure Drop Fully Sequenced
