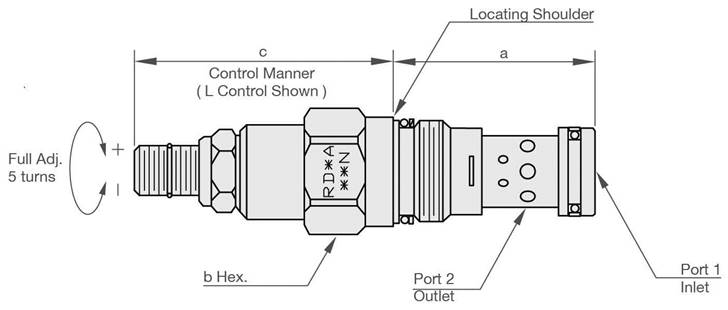

Direct-acting Relief Valve (RD)

RD2A - T10A - LAN

  a  b  -     c    - d e f

a.    Model Name : RD

b.    Valve Size : 1A, 2A, 3A, 6A, 8A

c.    Cavity : T162A, T10A, T3A, T16A, T18A

d.   Control Manner :

      L:standard screw adjustment

e.    Adjustable Range :

      A:35~210 bar

      B:20~105 bar

      C:70~420 bar

      D:14~55 bar

f.     Material of Seal :

      N:buna-N

      V:viton

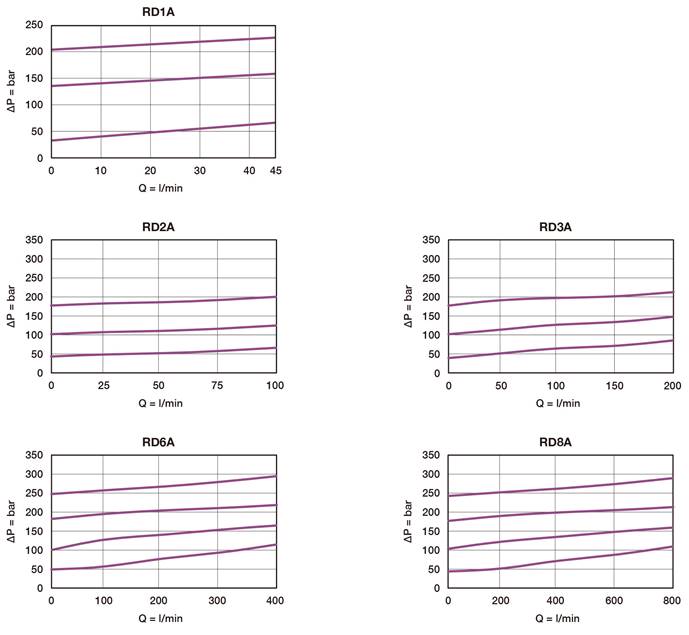

Typical Pressure Rise
