DHHP-16 - 1 - A25 - D2 - N
a - b - c -
d - e
a.
Model Name : DHHP-16
b. Housing Length & Thread Connection:

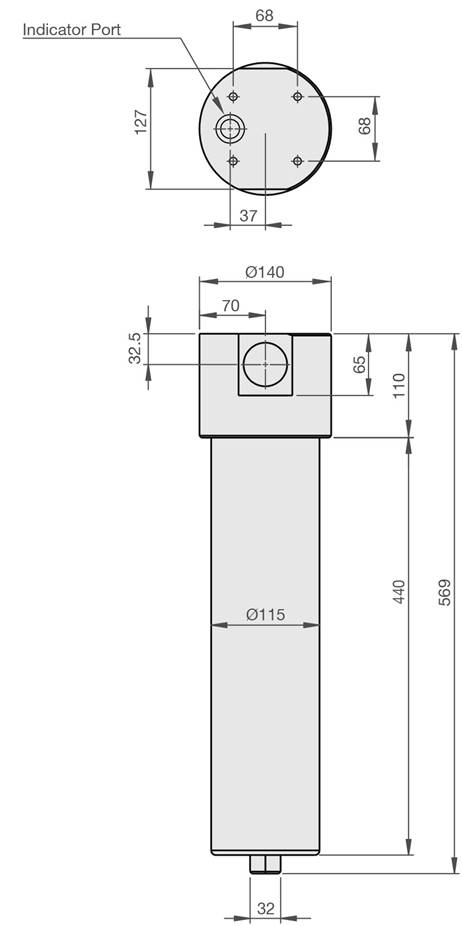

1:569mm. BSP, NPT, SAE 2"
c. Type of Filter Element :
A3:fiber 3um, B≧1000
A6:fiber 6um, B≧1000
A10:fiber 10um, B≧1000
A25:fiber 25um, B≧1000
T40:wire mesh 40um
d. Type
of Pressure Indicator :
N:with plug

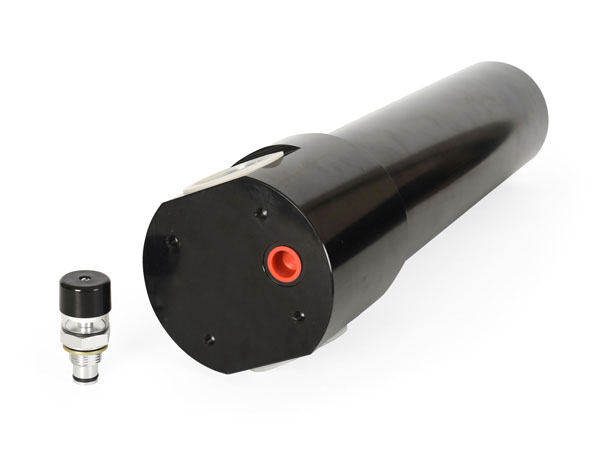

D1:visual
D2:visual-electrical
e. Seals
:
N:NBR
V:viton
|
