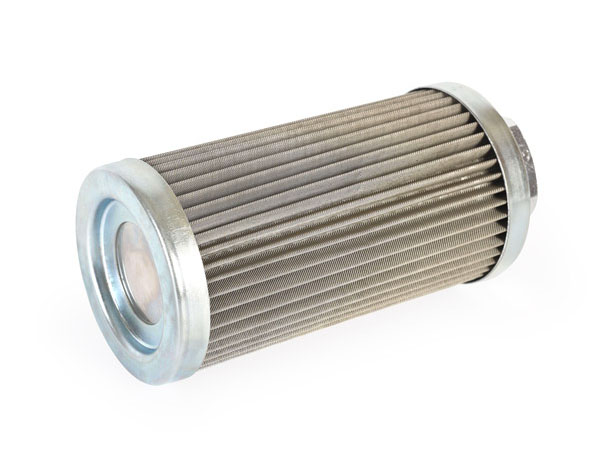

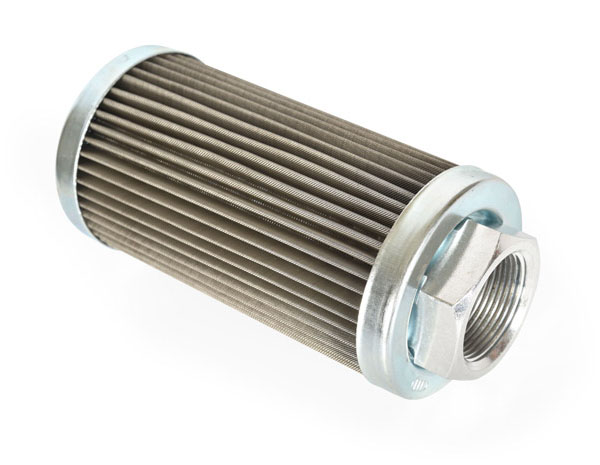

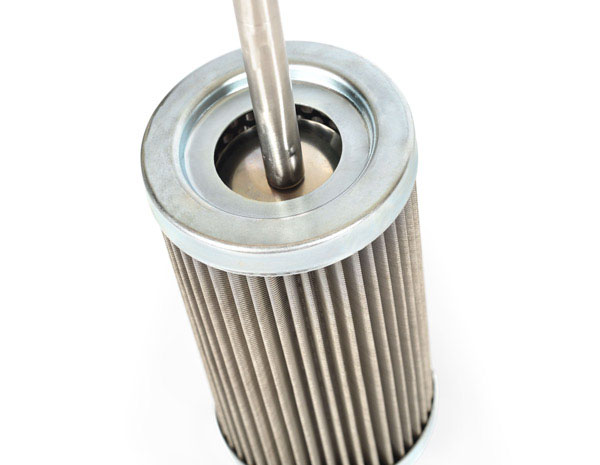

MF5 ( Suction Filter with Bypass )

MODEL SPEC.

Model	Flow Rate ( l/min)	Filtration Mesh	Weight ( kg )
MF5-04	50	100	0.25
MF5-06	50	100	0.25
MF5-08	100	100	0.35
MF5-10	150	100	0.56
MF5-12	280	100	0.80
MF5-16	280	100	0.80
MF5-20	700	100	1.40
MF5-24	750	100	1.50

ORDER CODES

MF5 - 10

a - b

a. Model Name : MF5

b. Thread Connection : 04, 06, 08, 10, 12, 16, 20, 24

SYMBOLS

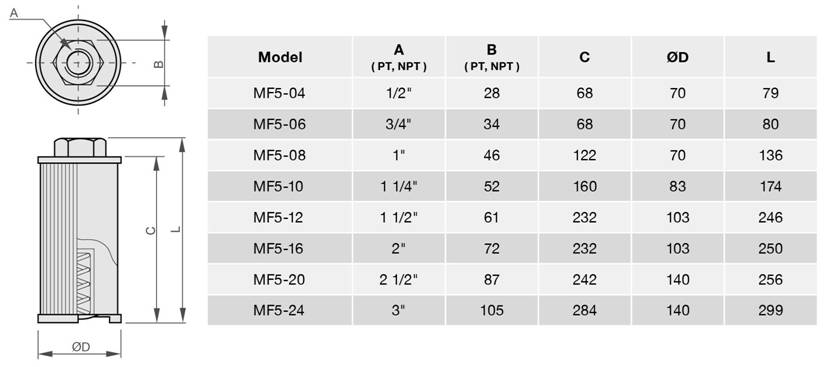

DIMENSION (UNIT : mm)
