DHHP-08 - 3 - A6 - D1 - N
a - b - c -
d - e
a.
Model Name : DHHP-08

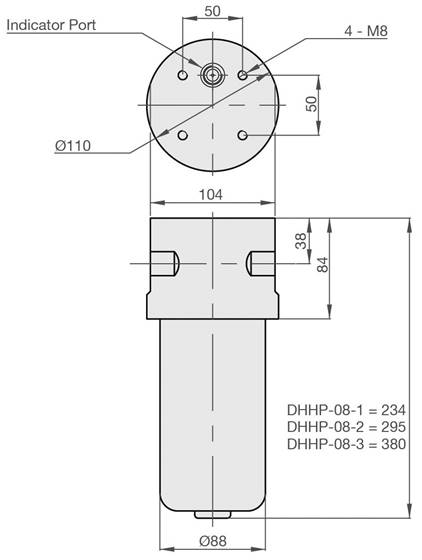

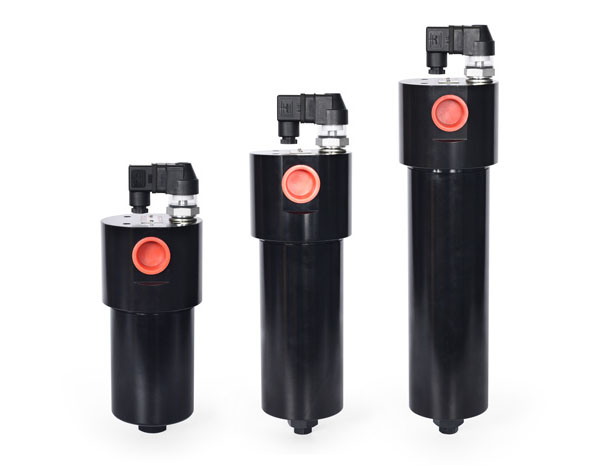

b. Housing Length & Thread Connection:
1: 234mm. BSP, NPT, SAE 1"
2: 295mm. BSP, NPT, SAE 1"
3: 380mm. BSP, NPT, SAE 1"

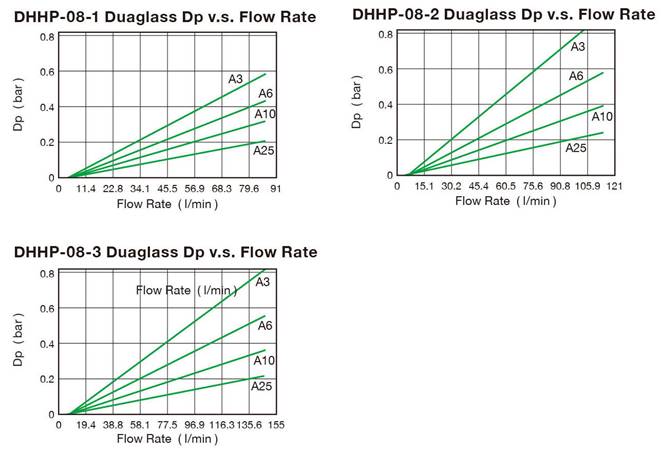

c. Type of Filter Element :
A3:fiber
3um, B≧1000
A6:fiber 6um, B≧1000
A10:fiber 10um, B≧1000
A25:fiber 25um, B≧1000
T40:wire mesh 40um

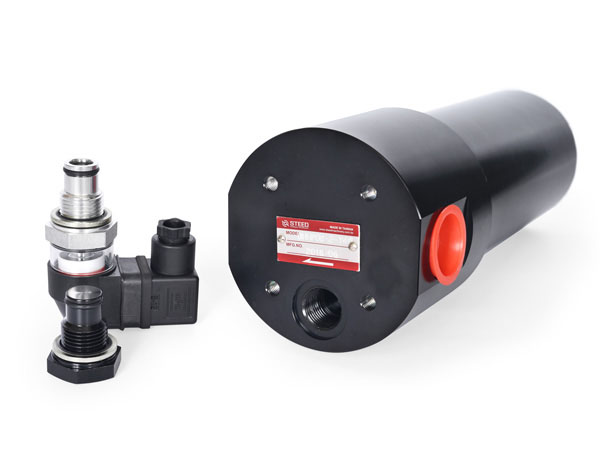

d. Type
of Pressure Indicator :
N:with plug
D1:visual
D2:visual-electrical
e. Seals
:
N:NBR
V:viton
|
