DHP-04 - 1 - T40 - N - N
a - b - c - d - e
a.

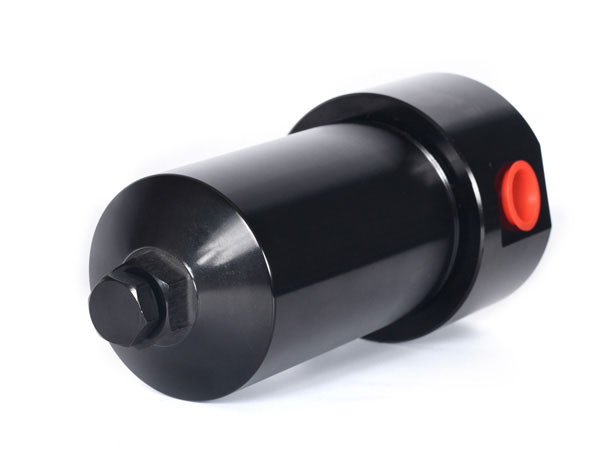

Model Name : DHP-04

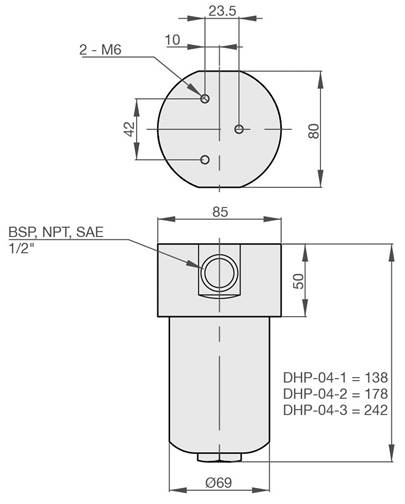

b. Housing Length & Thread Connection:
1: 138mm. BSP, NPT, SAE
1/2", 3/8"
2: 178mm. BSP, NPT, SAE
1/2"
3: 242mm. BSP, NPT, SAE
1/2"
c. Type of Filter Element :
A3:fiber 3um, B≧1000
A6:fiber 6um, B≧1000
A10:fiber 10um, B≧1000
A25:fiber 25um, B≧1000
T40:wire mesh 40um
d. Type
of Pressure Indicator :
N:with plug
e. Seals
:
N:NBR
V:viton
|
