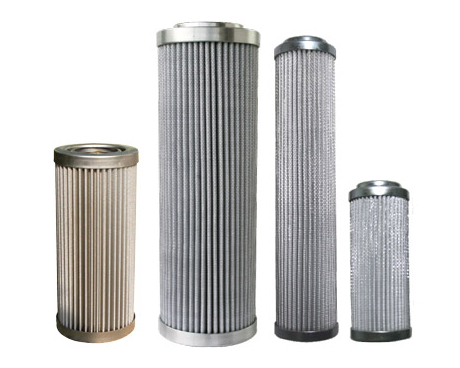

Material of Filtering Element
1. M represents metal material, a indicates
glass fiber.
2. Regular order of metal element : 100M,
200M, 300M, 400M, 700M, etc.
3. Regular order of glass fiber element : A3,
A5, A10, A25, A40, etc.
ex : If you want to purchase a 400 Mesh metal
element, please select 400M. If you need a 10µ glass fiber element,
please choose A10.
Mesh to Micron Conversion Chart
|
Mesh
|
um
|
|
20
|
850
|
|
40
|
425
|
|
60
|
250
|
|
100
|
150
|
|
120
|
125
|
|
150
|
106
|
|
200
|
75
|
|
250
|
63
|
|
300
|
50
|
|
400
|
40
|
|
700
|
25
|
|
1450
|
10
|
What does mesh
size mean?
Figuring out what mesh sizes are simple. All you need to do is counting
the number of openings in one inch of screen.
The number of
openings is the mesh size. So a 4 mesh screen means there are four
little squares in one inch square of the screen.
A 100 mesh
screen has 100 openings, and so on. As the number of mesh size
increases, the size of the particles decreases.
Mesh size is
not a precise measurement of particle size.
In addition,
the finer the weave, the closer the wires getting together. Eventually
there is no space between the wires at all.
What is a micron?
A micron is another measurement of particle size. A micron is
one-millionth of a meter or one twenty-five thousandth of an inch.
|
