MODEL SPEC.
Model
Mounted
Thread Connection
( PT )
Max. Operating Pressure
( bar )
Max. Operating Temperature
Weight
( kg )
RFT-06
Tank
3/4"
13.7
107°C ( 225°F )
0.98
ORDER CODES
RFT - 06 - 25N
a - b - c
a. Model Name :
RFT:tank type
b. Thread Connection :
06:PT 3/4”
c. Type of Filter Element : 10N, 25N, 100M
(N: Paper ; 10: 10μ, 25: 25μ ; M: metal ; 100: 100 Mesh)
SYMBOLS

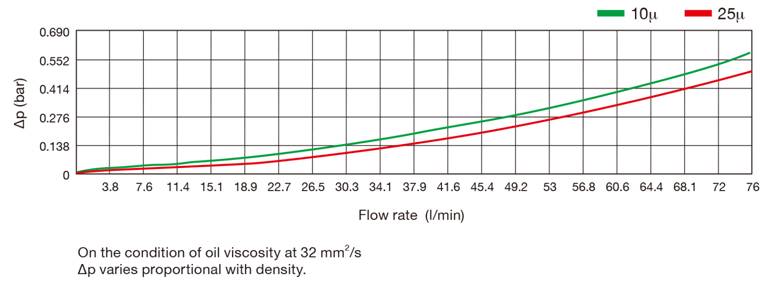

HOUSING PRESSURE DROP CURVE

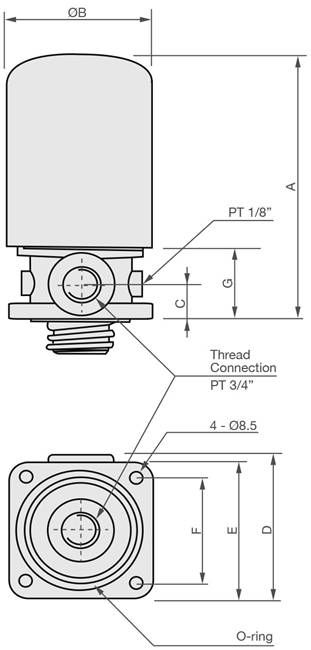

DIMENSION (UNIT : mm)
A
B
C
D
E
F
G
184
94
25
95
90
70
50
ELEMENT
Nominal Filtration Retention
Flow
( l/min)
Apply to
SE-50-10N
133
10μ Cellulose
60
SE-50-25N
25μ Cellulose
SE-50-100M
149μ Wire mesh
150
SE-70-10N
219
SE-70-25N
80
