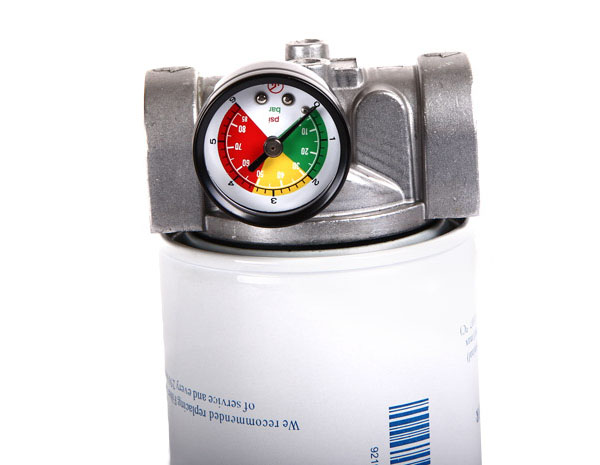

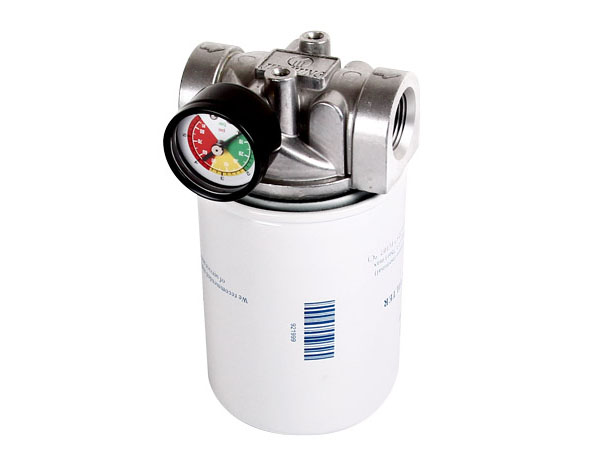

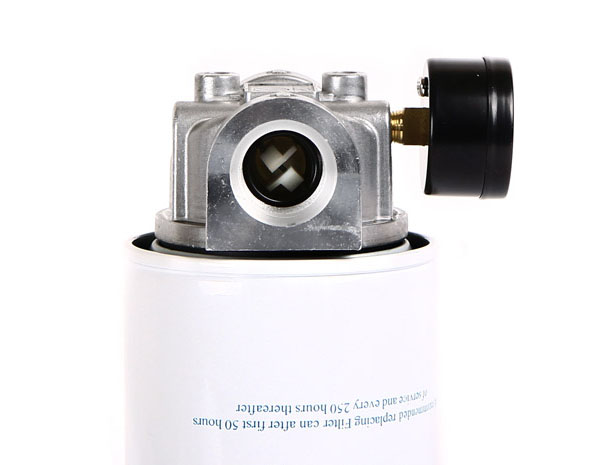

MODEL SPEC.
|
|
|
Model
|
Mounted
|
Thread
Connection
(
PT )
|
Max.
Operating Pressure
(
bar )
|
Max.
Operating Temperature
|
Weight
(
kg )
|
|
RF-06
|
Piping
|
3/4"
|
13.7
|
107°C ( 225°F
)
|
0.8
|
|
RF-08
|
Piping
|
1"
|
13.7
|
0.8
|
|
RF-10
|
Piping
|
1 1/4"
|
6.8
|
1.84
|
|
|
|
ORDER CODES
|
|
|
RF - 06 - 25N
a -
b - c
a. Model Name : RF:piping type
b. Thread Connection :
06:PT
3/4"
08:PT
1"
10:PT
1 1/4"
c. Type of Filter Element : 10N, 25N, 100M
(N:
Paper
; 10: 10μ, 25: 25μ ; M: metal ; 100: 100
Mesh)
|
|
|
SYMBOLS
|
|
|
|
|
|

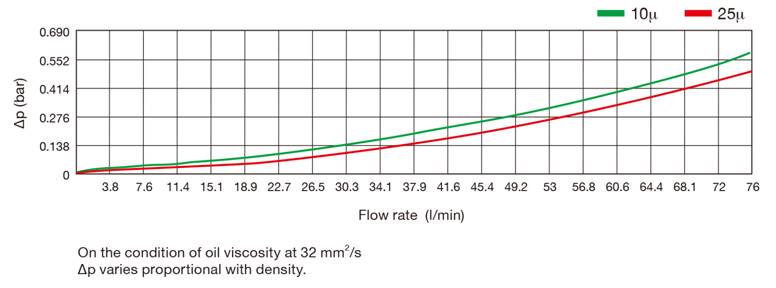

HOUSING PRESSURE DROP CURVE
|
|
|
|
|
|

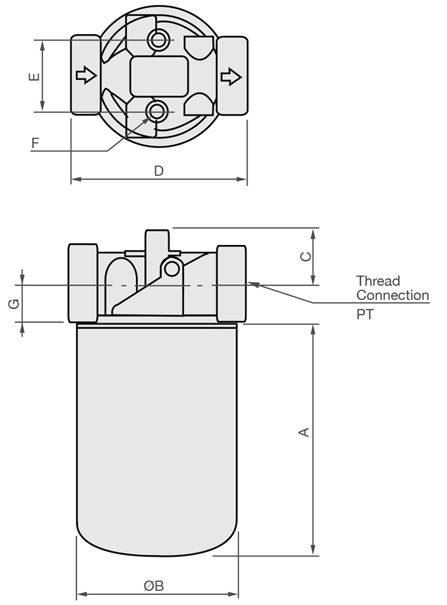

DIMENSION (UNIT : mm)
|
|
|
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
RF-06
|
133
|
94
|
25
|
94
|
38
|
M6 P1
|
24
|
|
RF-08
|
133
|
94
|
25
|
94
|
38
|
M6 P1
|
24
|
|
RF-10
|
174
|
127
|
30
|
135
|
47.6
|
M8
P1.25
|
37
|
|
|
|
ELEMENT
|
|
|
|
Model
|
A
|
B
|
Nominal Filtration Retention
|
Flow
( l/min)
|
Apply to
|
|
SE-50-10N
|
95
|
133
|
10μ Cellulose
|
60
|
RFT-06,
RF-06, RF-08
|
|
SE-50-25N
|
95
|
133
|
25μ Cellulose
|
70
|
RFT-06,
RF-06, RF-08
|
|
SE-50-100M
|
95
|
133
|
149μ Wire
mesh
|
150
|
RFT-06,
RF-06, RF-08
|
|
SE-70-10N
|
95
|
219
|
10μ Cellulose
|
70
|
RFT-06,
RF-06, RF-08
|
|
SE-70-25N
|
95
|
219
|
25μ Cellulose
|
80
|
RFT-06,
RF-06, RF-08
|
|
SE-100-10N
|
129
|
174
|
10μ Cellulose
|
150
|
RF-10
|
|
SE-100-25N
|
129
|
174
|
25μ Cellulose
|
160
|
RF-10
|
|
SE-100-100M
|
129
|
174
|
149μ Wire
mesh
|
250
|
RF-10
|
|
SE-150-10N
|
129
|
279
|
10μ Cellulose
|
170
|
RF-10
|
|
SE-150-25N
|
129
|
279
|
25μ Cellulose
|
180
|
RF-10
|
|
|
|
|
