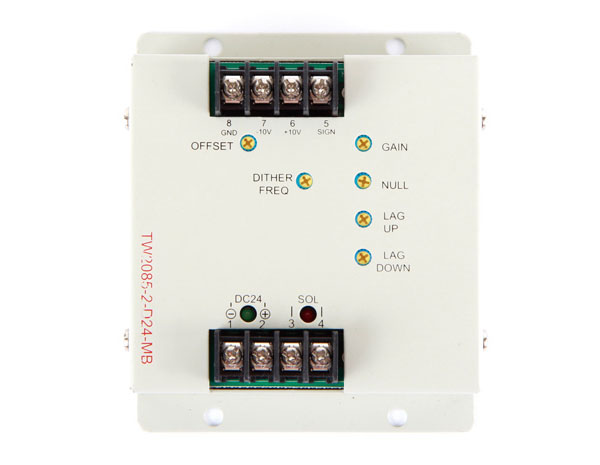

TW2085-2 type amplifier is used for
electro-hydraulic proportional pilot relief valves.
|
Model
|
TW2085-2
|
|
Supply Voltage
|
DC24V
|
|
Fuse
|
2A
|
|
Load Coil
Resistance
|
10Ω
/ 20Ω
(20°C)
|
|
Input Control
Voltage
|
0V
~ +10V
|
|
Max. Current Output
Range
|
0
~ 900 mA
|
|
Adjust the Null Value
|
0
~ 900 mA
|
|
Adjust the Gain Value
|
0
~ 900mA/2.5V
|
|
Up Ramp Period /
Down Ramp Period
|
0.1
~ 2.5 sec
|
|
Temperature Drift
|
0.1mA
/ 1°C
|
|
Work Temperature
|
0
~ 50°C
|
|
Max. Power
Requirement
|
15VA
|
|
Weight
|
0.21 kg
|
The effect used to vibrate a proportional valve spool is
called dither. Dithering can offset the hysteresis. The dither
frequency is specific to each valve and application,and the valve
amplifier, or controller, will have an adjustable dither frequency.
Hence, please purchase our amplifier togehter with the proportional
valves.
|
