TW9820

MODEL SPEC.

Model

TW9820

Supply Voltage

AC 28V±20%

DC24V

Fuse

2A

Load Coil Resistance

20Ω (20°C)

Input Control Voltage

0V ~ +10V

Max. Current Output Range

0 ~ 900 mA

Adjust the Null Value

0 ~ 900 mA

Adjust the Gain Value

0 ~ 900mA/2.5V

Up Ramp Period /

Down Ramp Period

0.1 ~ 2.5 sec

Temperature Drift

0.2mA / 1°C

Work Temperature

0 ~ 50°C

Max. Power Requirement

30VA

Weight

0.21 kg

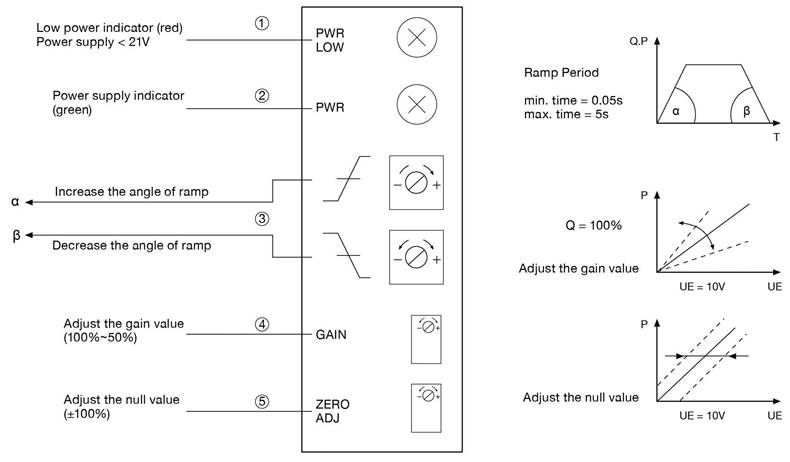

INSTRUCTION

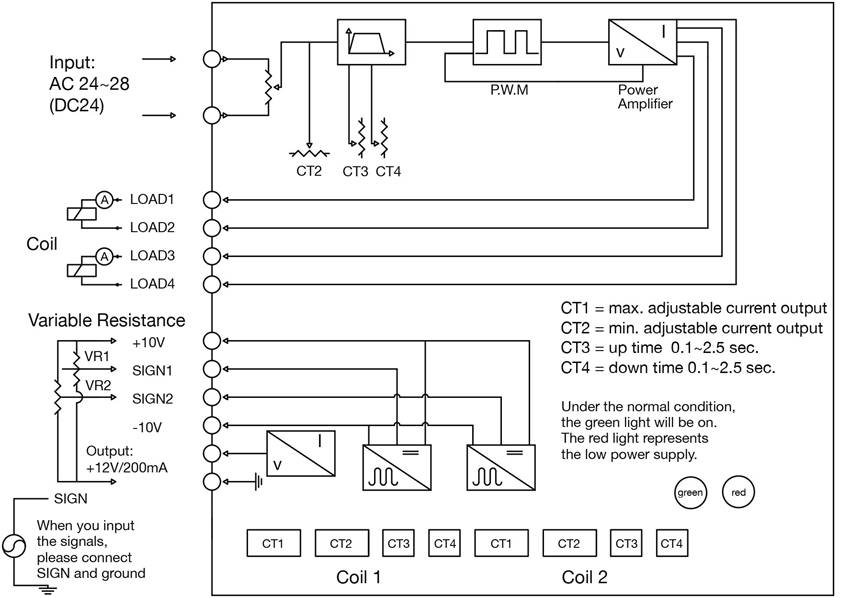

ELECTRIC DISTRIBUTION

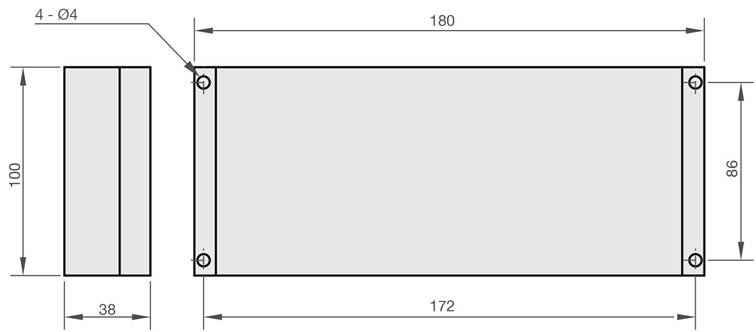

DIMENSION (UNIT : mm)
